Gaskets, Gasket Sheets & Gland Packing – Manufactured by Sealmax in India
Sealmax Global Pvt. Ltd. is an ISO 9001:2015 certified gasket manufacturer based in Vasai, Mumbai. Our own Sealmax range covers PTFE gaskets and sheets, spiral wound gaskets, graphite gaskets, non-asbestos gasket sheets, rubber gaskets and braided gland packing for pumps and valves. Standard sizes are available ex-stock from our factory, and custom gaskets are cut to your drawing.
PTFE Gaskets & Sheets
PTFE (Teflon) is the first choice for aggressive chemical service. Choose the grade to match your flange and media:
- Virgin PTFE sheets, gaskets, rods and bushes (Style 9900) – FDA-conform, chemical resistant up to 260°C.
- 25% glass filled PTFE / GFT (Style 9900G) – better creep and wear resistance than virgin PTFE.
- Expanded PTFE (soft PTFE) gaskets and sheets (Style 9909) – conforms to uneven or damaged flanges.
- Expanded PTFE joint sealant tape (Style 9909T) – self-adhesive tape for large or irregular flanges.
PTFE Envelope Gaskets
Envelope gaskets combine a PTFE outer jacket with a compressible insert, giving chemical resistance with better sealability. We make all three types: slit type (940S) for general chemical duty, mill type (940M) machined from solid PTFE, and diffusion barrier type (940D) for aggressive media where permeation is a concern.
Spiral Wound & Graphite Gaskets
For refineries, petrochemical plants and high-temperature steam lines, our spiral wound gaskets (Style 930) are made to ASME B16.20 with graphite or PTFE filler. Our pure expanded graphite sheets and gaskets (Style 920) are 98% carbon purity and rated up to 450°C. For higher pressure or easier handling, choose graphite with SS plain insert (920Pi) or graphite with SS tanged insert (920Ti).
Non-Asbestos (CNAF) & Aramid Gasket Sheets
Compressed non-asbestos fibre sheets are the general-purpose choice for oils, fuels, water and low-pressure steam.
| Sheet | Max. temperature | Max. pressure |
|---|---|---|

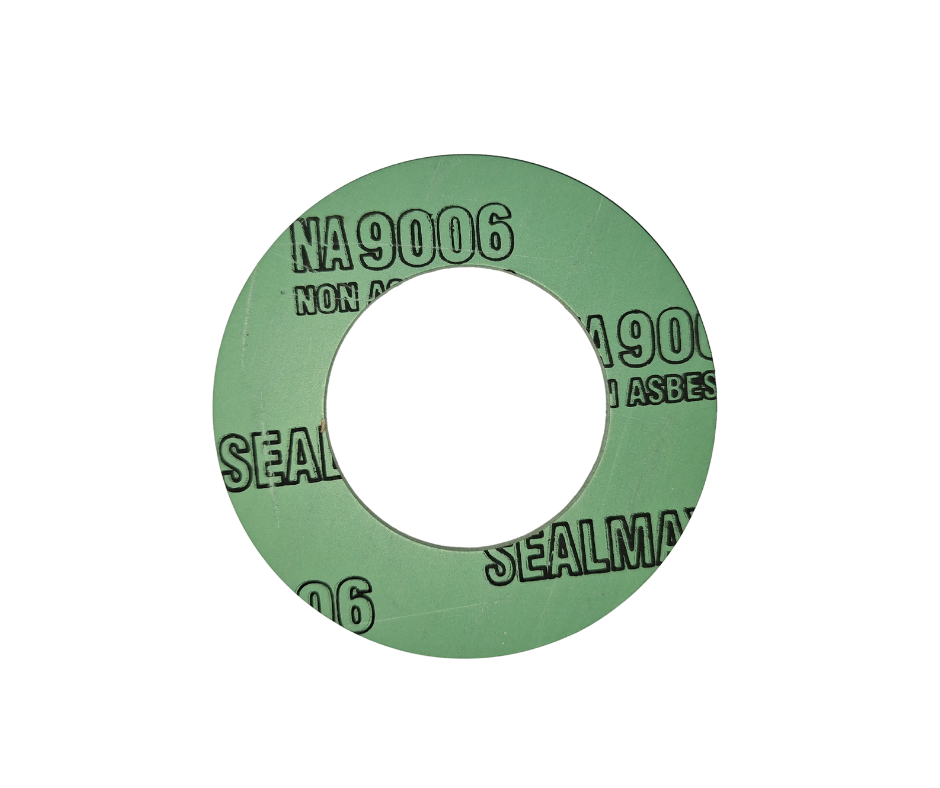

| Non-asbestos gasket sheet (9006) | 165°C | 50 bar |

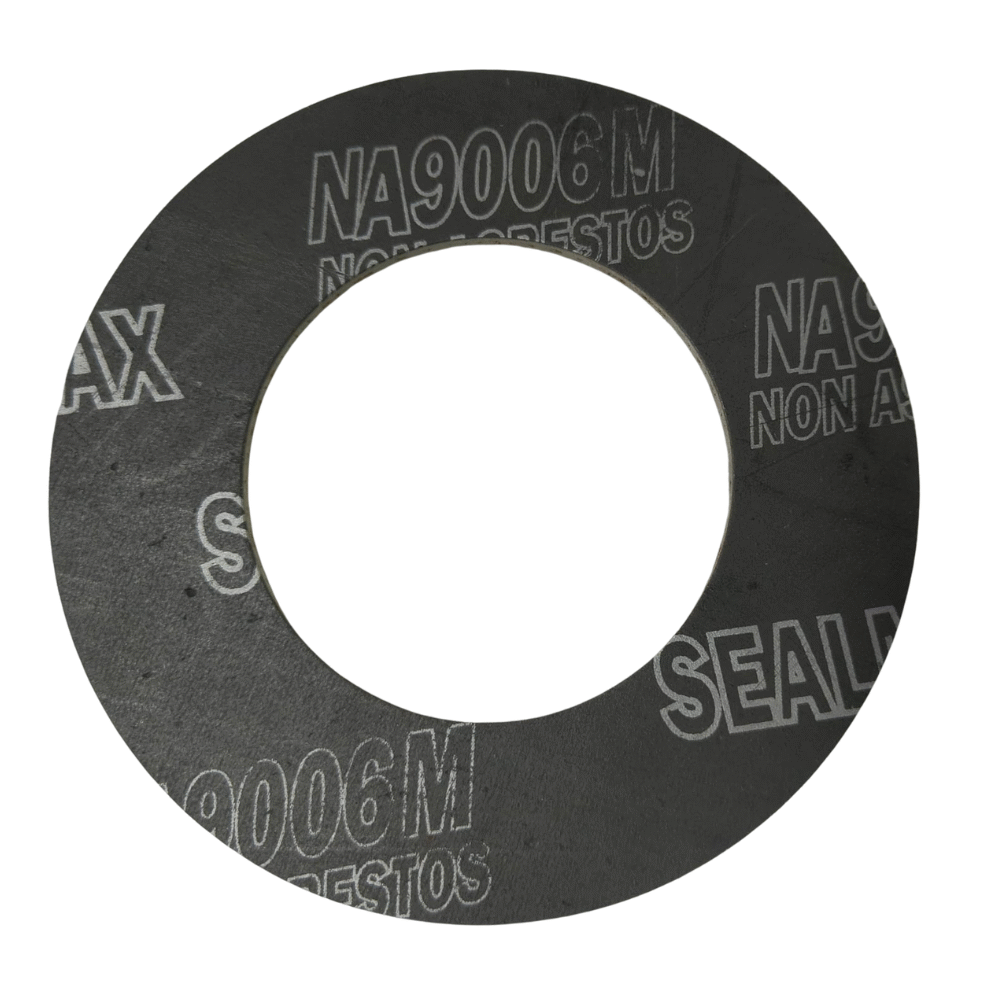

| CNAF sheet with steel wire (9006M) | 200°C | 65 bar |

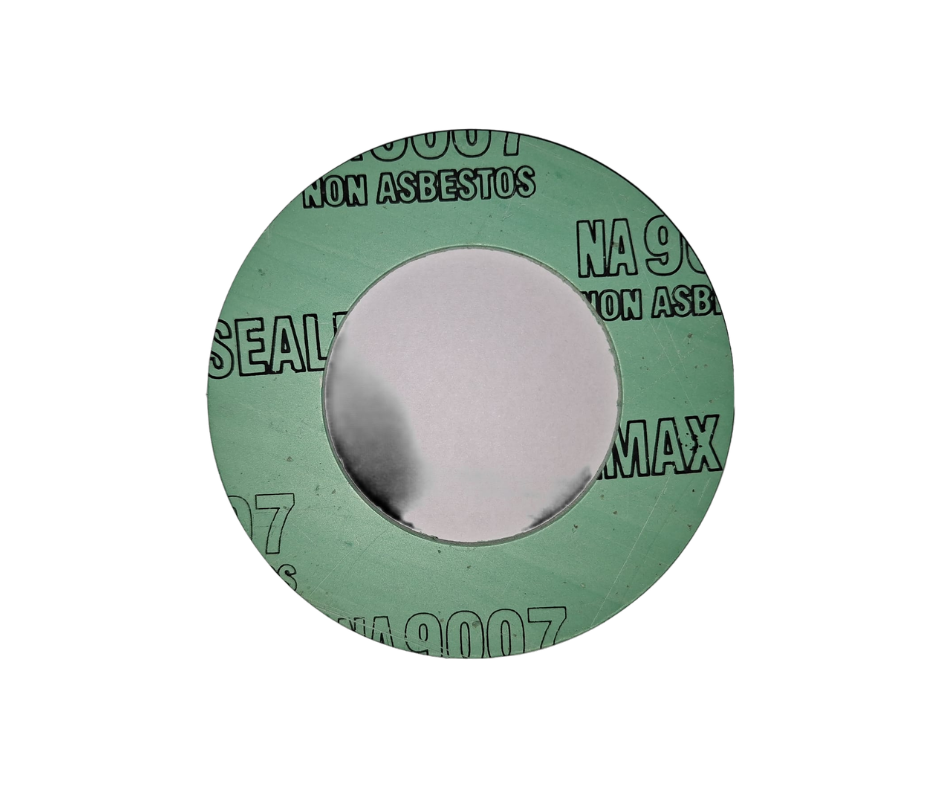

| Aramid fibre gasket sheet (9007) | 225°C | 80 bar |

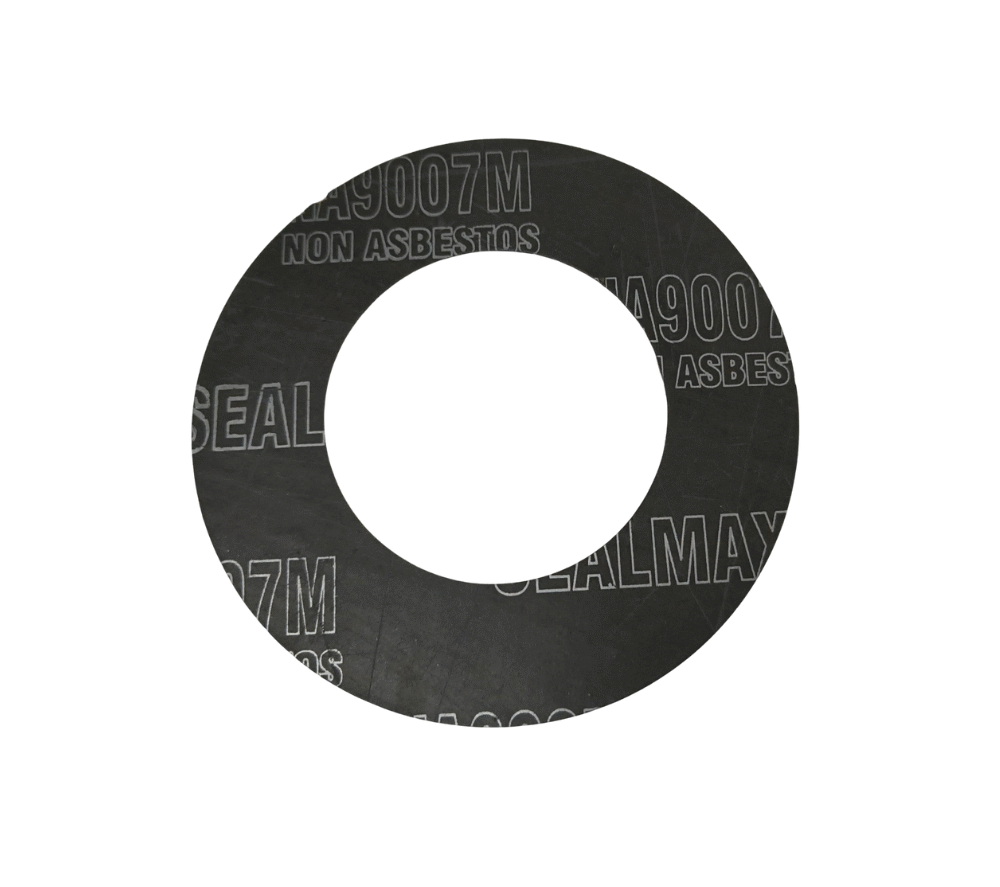

| Aramid sheet with steel wire (9007M) | 250°C | 90 bar |

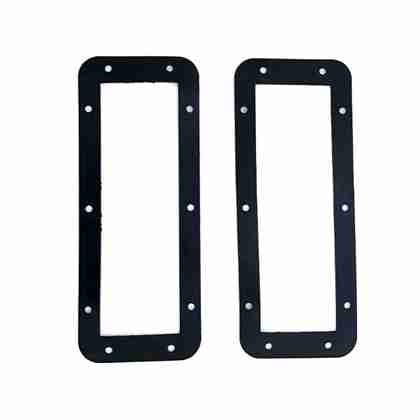

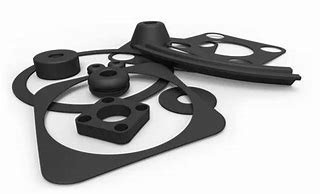

Rubber Gaskets & Sheets
We supply rubber gaskets and sheets cut to size in every common elastomer: EPDM rubber for water, steam and outdoor service; food grade nitrile (NBR) rubber for oils and fuels; neoprene (chloroprene) rubber for weather and refrigerant resistance; food grade silicone rubber for pharma, dairy and food plants; and Viton (FKM) rubber for aggressive chemicals and high temperatures.

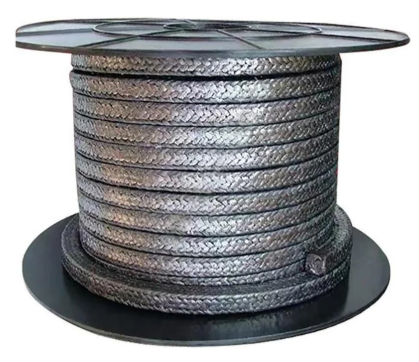

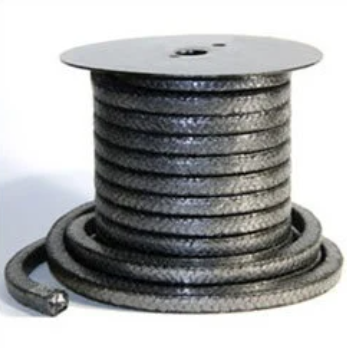

Gland Packing for Pumps & Valves
Our braided gland packings cover graphite, PTFE, aramid and carbon fibre constructions:
- Graphite gland packing (Style 900) – low-sulphur with corrosion inhibitor; also available with Inconel wire (900I) or SS wire insert (902SS).
- Pure expanded PTFE packing (Style 916) – FDA-conform, for chemical, food and pharma service.
- PTFE packing with aramid corners (906) and graphited PTFE packing with aramid corners (908) – for pumps handling abrasives.
- Aramid packing with PTFE impregnation – Style 904 and Style 907 – for slurry and abrasive media.
- Carbon fibre packing with graphite (903) – for high-speed pumps.
- Expanded graphited PTFE packing (927) and extruded PTFE rope (922).
Industries We Serve
Sealmax gaskets and packings are used in refineries, petrochemical and chemical plants, fertilizer units, pharmaceutical and food processing plants, distilleries, power and green energy projects, offshore installations and by equipment OEMs across India and Asia.
Why Buy From Sealmax?
- ISO 9001:2015 certified manufacturing in Vasai, Mumbai
- Standard DIN and ASME sizes available ex-stock; custom shapes cut to drawing
- Technical help with gasket selection, including bolt torque recommendations
- Exclusive Indian partner of IDT Germany for high-performance sealing products
Need a quote or help choosing the right gasket? Contact our team with your size, media, temperature and pressure.
FAQs
Which gasket material should I use for chemical service?
PTFE is the most chemically resistant gasket material. Use expanded PTFE for uneven flanges, glass filled PTFE where creep is a concern, and PTFE envelope gaskets for glass-lined or fragile flanges.
What is the difference between graphite and PTFE gaskets?
Graphite handles much higher temperatures (up to 450°C for our Style 920) and is preferred for steam and hydrocarbons. PTFE (up to 260°C) is preferred where chemical resistance or food-grade compliance matters most.
When should I use a spiral wound gasket?
Spiral wound gaskets are used on raised-face flanges in high-pressure, high-temperature and cyclic service, such as refinery and petrochemical piping.
What is graphite gland packing?
Graphite gland packing is a braided rope of expanded graphite used to seal pump shafts and valve stems. It offers excellent heat resistance and thermal conductivity.
Do you make custom gaskets?
Yes. We cut gaskets to standard DIN and ASME sizes and to customer drawings. Send your requirement through our contact page.
