Application
Properties
Installation
Application
- Sealmax Style 9909T is a high-performance one-side adhesive joint sealant tape manufactured from 100% uni-axially expanded PTFE (ePTFE), designed for reliable sealing of flange joints and static sealing applications.
- It can seal weak flanges subject to considerable deformation such as glass reinforced plastics (GRP), plastic fittings and ventilation facilities.
- Style 9909T is used in pressure sensitive connections and applications where only a limited flange load is available, providing a stress sensitive solution.
Properties
- Style 9909T has one-side adhesive backing which enables quick, accurate installation and holds steal in position during assembly.
- Exceptional chemical resistance, inert to virtually all corrosive chemicals across a wide pH range (pH 0-14).
- Excellent compressibility allowing effective sealing of uneven, warped or damaged flange surfaces ensuring consistent sealing stress over extended service periods.
- Style 9909T is non-toxic and non-contaminating, suitable for high-purity, pharmaceutical and food grade applications.
- Wide temperature resistance suitable for both cyrogenic and high-temperature services
Installation
- Ensure all flange sealing surfaces are clean, dry and free from dust, oil, grease or old gasket material before installation.

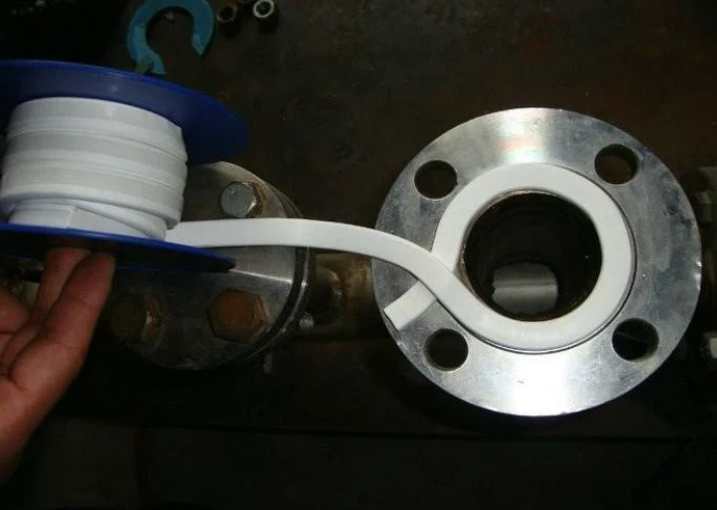

- Apply Style 9909T evenly around the flange or sealing surface without overstretching the tape.

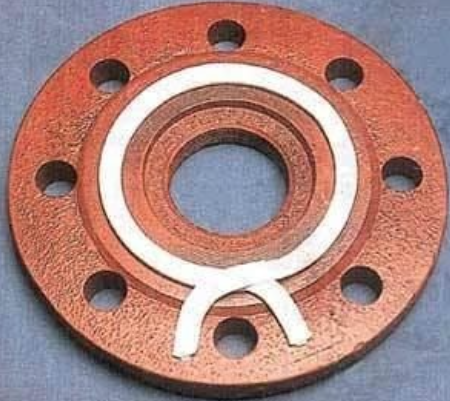

- Join tape ends by butting or light overlapping; avoid excessive build-up at the joint area.
- Assemble the flange and tighten bolts using a cross-pattern tightening sequence to ensure even compression.
- Apply bolt load gradually in stages to reach the recommended sealing stress.
- Re-torque bolts if required after the system reached operating temperature
|
Technical Specifications
|
||||
|
SR.NO.
|
PROPERTIES
|
UNIT
|
Test Method Reference
|
Specified Values
|
|
1
|
Density
|
gm/cm3
|
ASTM D-792
|
0.65 ± 10%
|
|
2
|
Tensile Strength (Min.)
|
Mpa
|
ASTMD-638
|
12 ± 5
|
|
3
|
Compressibility
|
%
|
ASTM F36
|
> 60%
|
|
4
|
Recovery
|
%
|
ASTM F36
|
> 8%
|
|
5
|
Creep relaxation (22 hrs at 100⁰C)
|
%
|
ASTM F38
|
≤ 35%
|
|
6
|
Maintenance factor (m)
|
–
|
–
|
1.5
|
|
7
|
Seating stress (y)
|
–
|
–
|
2500 psi
|
|
General Specifications
|
|||
|
Sr.No.
|
Parameters
|
Specifications
|
Remarks
|
|
1
|
Material
|
100% Uni-axially Expanded PTFE
|
microporous fibrous texture
|
|
2
|
Colour
|
White
|
–
|
|
3
|
Operating Temperature
|
–240°C to +270°C (-400°F to +518°F)
|
Intermittent to +315°C (+600°F)
|
|
4
|
Pressure range
|
Vacuum upto 200 bar (3000 Psi)
|
Depends on the installation situation
|
|
5
|
Shelf Life
|
Unlimited under proper storage
|
Non-ageing material
|
|
6
|
Available thickness
|
See below table
|
–
|
|
7
|
Available forms
|
Tape
|
–
|
|
General Specifications
|
|||||
|
Sr. No.
|
Sizes
|
5 Mtrs
|
10 Mtrs
|
25 Mtrs
|
50 Mtrs
|
|
1
|
3mm W x 1.5mm thk
|
–
|
–
|
X
|
X
|
|
2
|
5mm W x 2mm thk
|
–
|
–
|
X
|
X
|
|
3
|
7mm W x 2.5mm thk
|
–
|
X
|
X
|
X
|
|
4
|
10mm W x 3mm thk
|
–
|
X
|
X
|
X
|
|
5
|
12mm W x 4mm thk
|
–
|
X
|
X
|
X
|
|
6
|
14mm W x 5mm thk
|
–
|
X
|
X
|
X
|
|
7
|
17mm W x 6mm thk
|
–
|
X
|
X
|
–
|
|
8
|
20mm W x 3mm thk
|
–
|
X
|
X
|
–
|
|
9
|
20mm W x 7mm thk
|
–
|
X
|
X
|
–
|
|
10
|
25mm W x 5mm thk
|
–
|
X
|
X
|
–
|
|
11
|
25mm W x 10mm thk
|
–
|
X
|
X
|
–
|
|
12
|
28mm W x 5mm thk
|
X
|
X
|
X
|
–
|
|
13
|
40mm W x 5mm thk
|
X
|
X
|
–
|
–
|
|
*Custom sizes available on requests
|
|||||
