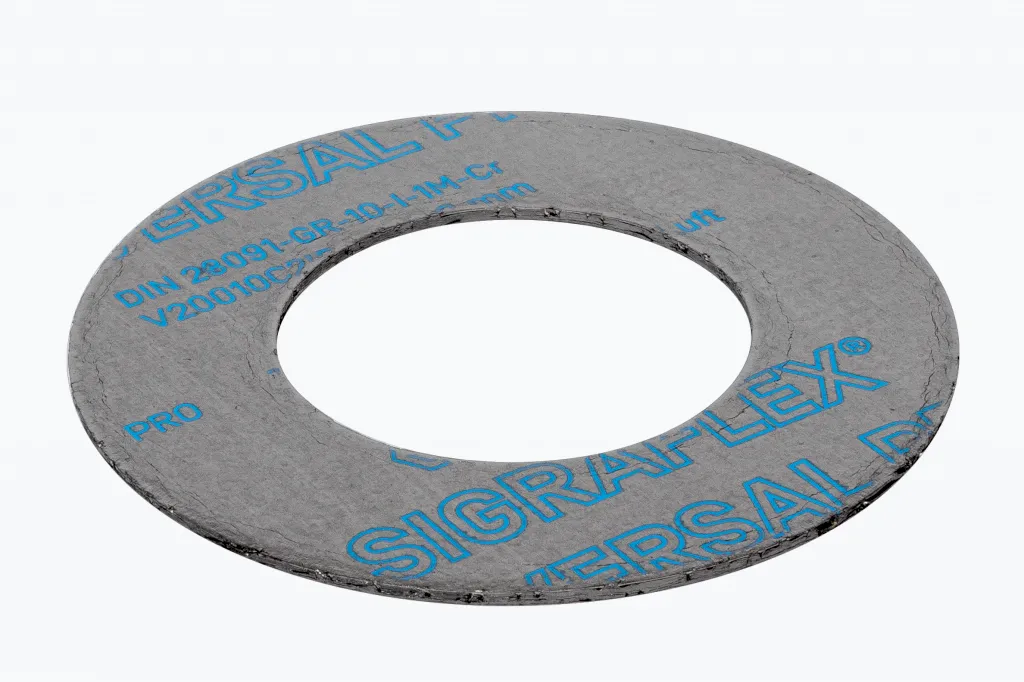

SIGRAFLEX® Universal Pro flat gasket/plate

Further development of established Sigraflex Universal, with TA-Luft-approval as per VDI 2440 / VDI 2200. Technical data of Sigraflex Universal Pro match those of Sigraflex Universal. Gasket has lower burnout properties which guarantees a longer operating safety and lifespan.

Enquire Now
Download Datasheet

Article Number

3865FD01

Material

3865

Profile

FD01

Description

Operating Data

Temperature
450 °C
Temperature (min)
-269 °C
Temperature (max)
550 °C
Pressure (max)
100 bar

Gasket characteristics EN 13555

Gasket Characteristics (Amtec)
Dichtungskennwerte 2 mm (Amtec)
https://sealmax.in/wp-content/uploads/2026/02/IDT-FD01-WS-3865-20-mm-FHM-Rev02-1.pdf

Gasket characteristics EN 13555

Gasket Characteristics (Amtec)
Dichtungskennwerte 2 mm (Amtec)
Gasket Characteristics 3 mm (Amtec)

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
17 × bd
k1 [mm]
1,3 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
160
6vu 0,1 [N/mm2]
17
m (DIN 28090)
1.3
6BO 300 °C [N/mm2]
140

Gasket characteristics ASME

m (ASME)
2.5
Y [PSI]
2000

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
Blow-out resistance
BAM oxygen
Gas (DIN 3535-6)

Flange Shapes

Self-centering, Raised Face (form IBC)
Male-Female (form SR)
Apparatus, customized
With partition bars
