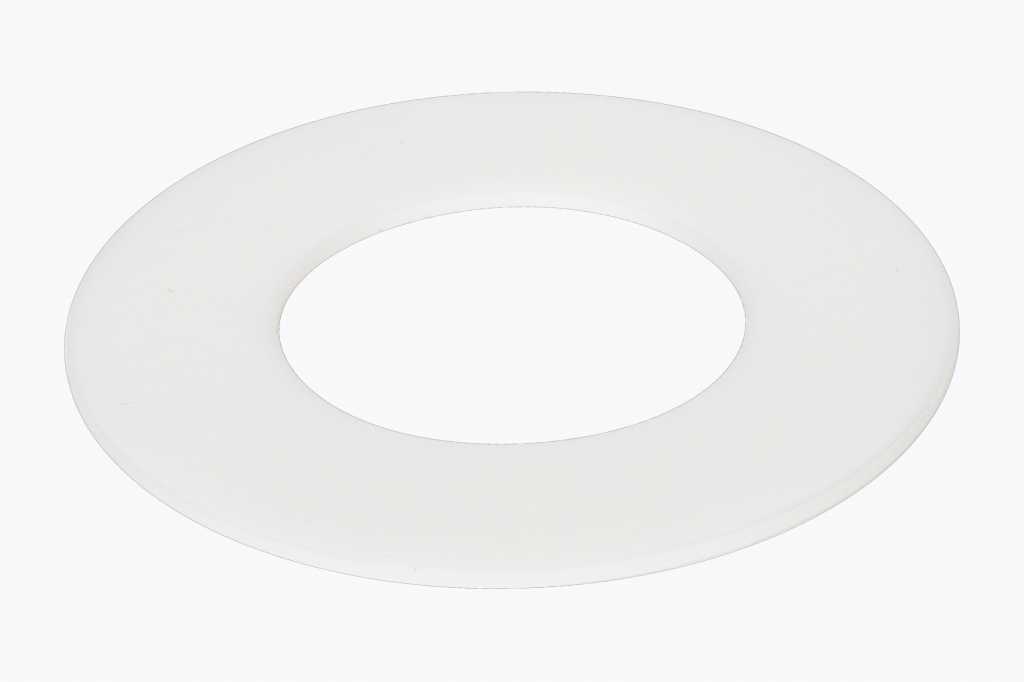

PTFE flat gasket from Dyneon™ TFM™ 1600

Basic material for the flat gaskets is the modified cold flow reduced TFM™ 1600 by Dyneon™.

Enquire Now
Download Datasheet

Article Number

7110FD01

Material

7110

Profile

FD01

TFM™ is a modified PTFE [mPTFE]. This material is still part of our portfolio. Alternatively, we process mPTFE such as INOFLON® M295 or DAIKIN® MG3 MOD-FF/HD.

Description

Operating Data

Temperatur (min)
-269 °C
Temperature (max)
200 °C
Pressure (max)
40 bar

Gasket characteristics EN 13555

Gasket Characteristics (IDT)

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
10 × bd
k1 [mm]
1,1 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
50
6vu 0,1 [N/mm2]
10
m (DIN 28090)
1.1
6BO 150°C [N/mm2]
135
6BO 300 °C [N/mm2]
130

Gasket characteristics ASME

m (ASME)
1.5
Y [PSI]
3400

Approvals and test reports

TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
BAM oxygen
BAM oxygen (liquid)
Drinking Water (KTW; WRAS)
WRAS
W270
FDA (Food)
EG 1935/2004

Flange shapes

Self-centering, Raised Face (form IBC)
Male-Female (form SR)
Apparatus, customized
With partition bars
