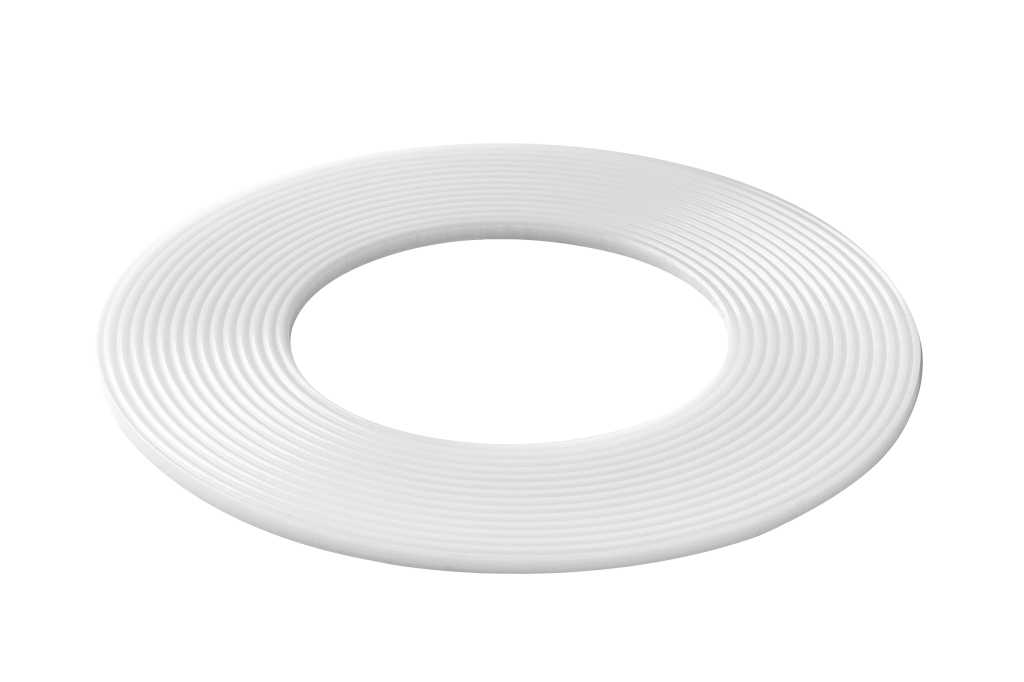

Flat gasket from Dyneon™ TFM™ 1600 with kammprofile surface

Made from modified, cold flow reduced Dyneon™ TFM™ 1600 with kammprofile surface

Enquire Now
Download Datasheet

Article Number

7110FD04

Material

7110

Profile

FD04

TFM™ is a modified PTFE [mPTFE]. This material is still part of our portfolio. Alternatively, we process mPTFE such as INOFLON® M295 or DAIKIN® MG3 MOD-FF/HD.

Description

Operating Data

Temperatur (min)
-269 °C
Temperature (max)
200 °C
Pressure (max)
40 bar

Gasket characteristics EN 13555

Gasket Characteristics (IDT)

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
5 × bd
k1 [mm]
1,1 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
50
6vu 0,1 [N/mm2]
5
m (DIN 28090)
1.1
6BO 150 °C [N/mm2]
30

Gasket characteristics ASME

m (ASME)
1.5
Y [PSI]
800

Approvals & Test Reports

DIN EN13555 (TA Luft 2021)
BAM oxygen
BAM oxygen (liquid)
Drinking Water (KTW; WRAS)
WRAS
W270
FDA (Food)
EG 1935/2004

Flange Shapes

Self-centering, Raised Face (form IBC)
Plastic flange
