Description
Operating Data
Temperature (min)
-269 °C
Temperature (max)
260 °C
Density approx. (g/cm³)
1.7 g/cm³
Material structure
PTFE
Waterproofing
PTFE
Fields of Application
Valves (Vg)
2 m/s
Valves (p)
250 bar
Applications
abrasive and sticky media
not suitable
Water, Process water, Lake water
suitable
Hot water, boiler dining water
suitable
Vapors, acid gases, nitrogen
suitable
Oxygen
suitable
Mineral oils, animal fats
suitable
Heat carrier oils, synthetic oils
suitable
Alcalia diluted, salt solutions
suitable
Alcalia concentrated
suitability
Inorganic acids diluted, salt solutions
suitable
Inorganic acids concentrated
suitable
Solvents, other organic compounds
suitable
Lacques, colors (silicone -free)
suitable
Approvals & Test Reports
TA Luft 2002 (VDI 24A0/2200)
Test without disc suspension, at 200°C, 40 bar and 5,000 spindle movements.
Forms of delivery

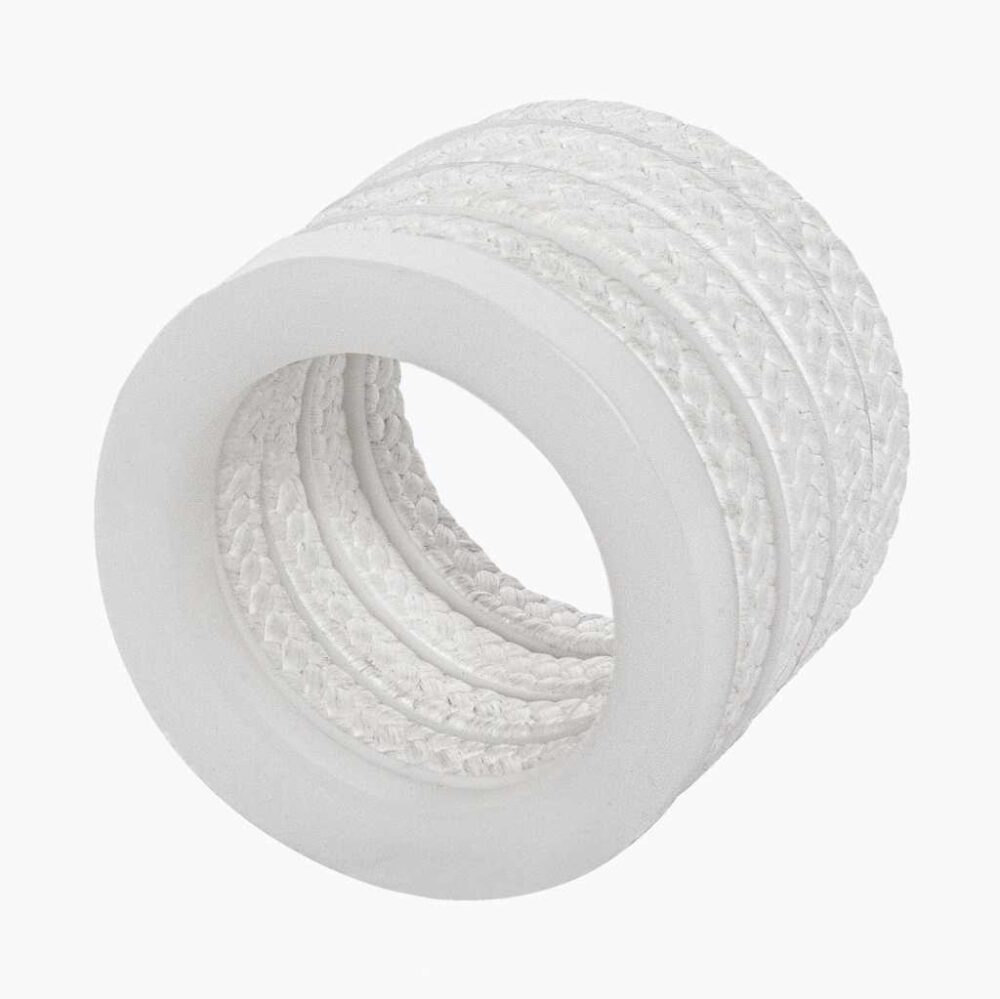

Compression-moulded packing ring or packing set
Dimensions on request
