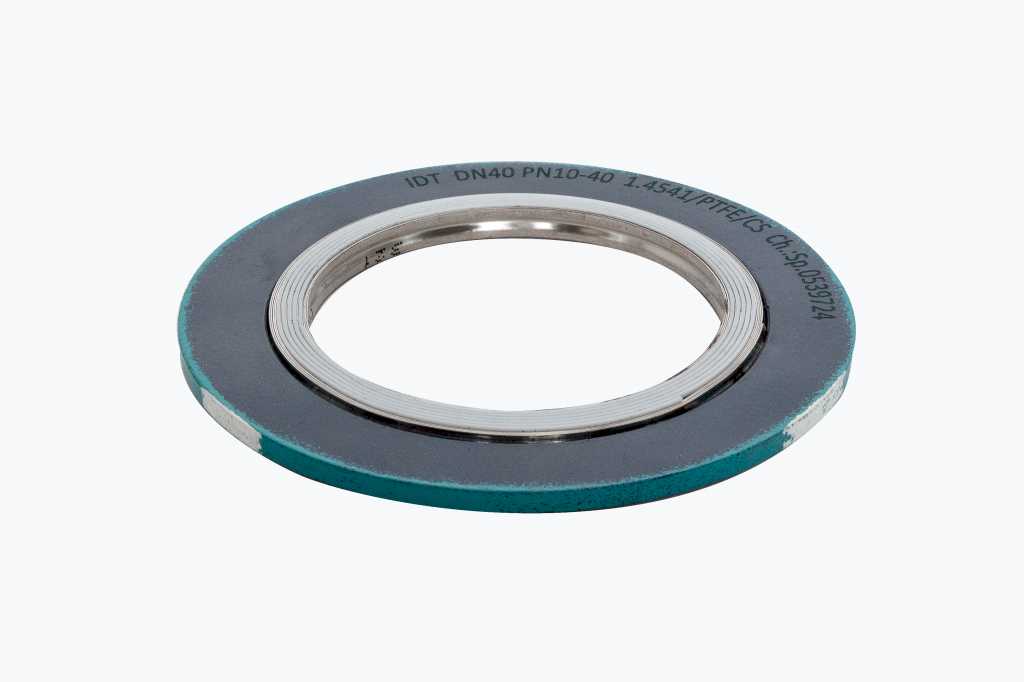

Spiral Wound Gasket with outer ring, Material: 1.4541/PTFE/Carbon Steel

The Spiral Wound Gasket consists of a spirally wound, beaded metal strip made from stainless steel 1.4541. A PTFE soft material strip [unsintered] protruding on both sides is inserted between the individual windings.

The outer support ring [material: carbon steel, corrosion protected] stabilizes the spiral on the outer diameter and also ensures the centering between the flange bolts.

Spiral Wound Gaskets are particularly suitable for applications with high operating pressures and critical operating conditions.

Enquire Now
Download Datasheet

Article Number

6415SD20

Material

6415


Profile

SD20


Description

Operating Data

Temperature (min)
-269 °C
Temperature (max)
260 °C
Pressure (max)
320 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
45 × bd
k1 [mm]
1,2 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
150
6vu 0,1 [N/mm2]
45
m (DIN 28090)
1.2
6BO 200 °C [N/mm2]
130

Gasket characteristics ASME

m (ASME)
3
Y [PSI]
6600

Flange shapes

Self-centering, Raised Face (form IBC)
