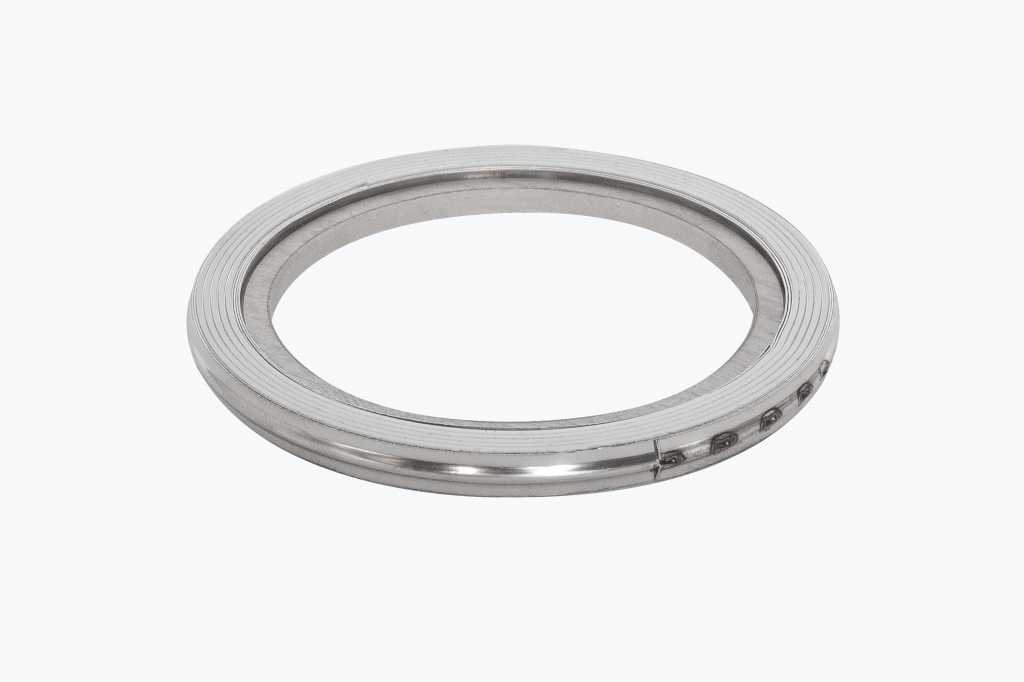

Spiral wound gasket with inner ring, Material: 1.4541/PTFE

The Spiral Wound Gasket consists of a spirally wound, beaded metal strip made from stainless steel 1.4541. A PTFE soft material strip [unsintered] protruding on both sides is inserted between the individual windings.

The inner support ring [material: 1.4541] stabilizes the spiral on the inner diameter. This gasket type has no outer support and centering ring and is suitable for the use in male-female flange systems.

Spiral Wound Gaskets are particularly suitable for applications with high operating pressures and critical operating conditions.

Enquire Now
Download Datasheet

Article Number

6413SD30

Material

6413


Profile

SD30


Material combinations other than shown here are available on request.

Description

Operating Data

Temperature (min)
-269 °C
Temperature (max)
260 °C
Pressure (max)
320 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
45 × bd
k1 [mm]
1,2 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
300
6vu 0,1 [N/mm2]
45
m (DIN 28090)
1.2
6BO 200 °C [N/mm2]
240

Gasket characteristics ASME

m (ASME)
3
Y [PSI]
6600

Flange shapes

Male-Female (form SR)
Apparatus, customized
With partition bars
