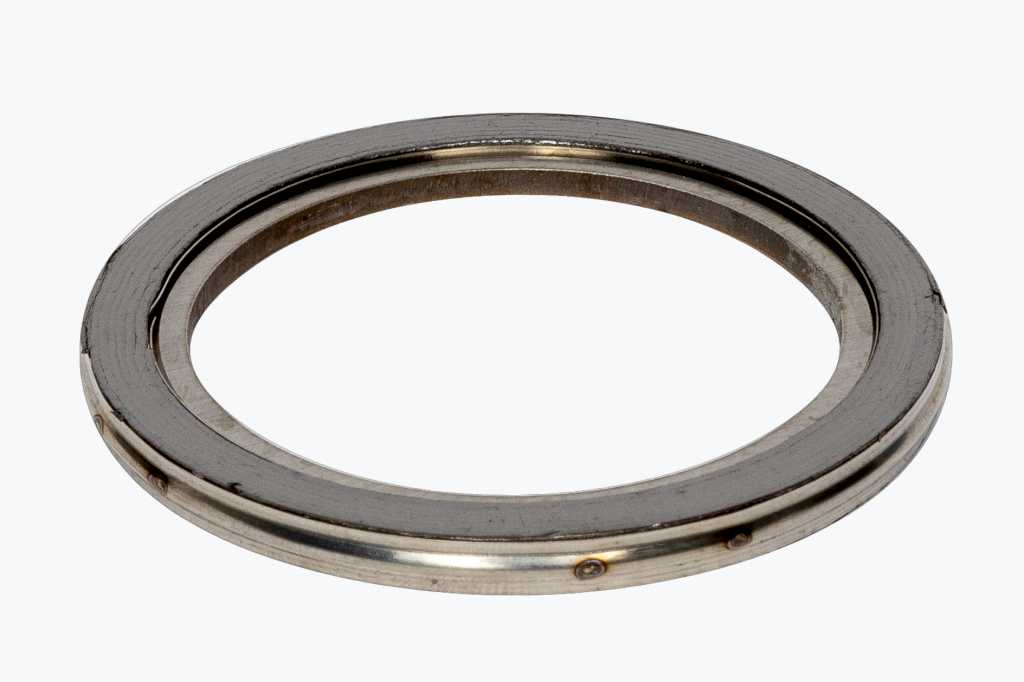

Spiral Wound Gasket with inner ring, Material: 1.4541/Graphite

The Spiral Wound Gasket consists of a spirally wound, beaded metal strip made from stainless steel 1.4541. A graphite soft material strip [purity 98%C] protruding on both sides is inserted between the individual windings.

The inner support ring [material: 1.4541] stabilizes the spiral on the inner diameter. This gasket type has no outer support and centering ring and is suitable for the use in male-female flange systems.

Spiral Wound Gaskets are particularly suitable for applications with high operating pressures and critical operating conditions.

Enquire Now
Download Datasheet

Article Number

6411SD30

Material

6411


Profile

SD30


Material combinations other than shown here are available on request.

Description

Operating Data

Temperature
450 °C
Temperature (min)
-269 °C
Temperature (max)
550 °C
Pressure (max)
320 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
50 × bd
k1 [mm]
1,4 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
300
6vu 0,1 [N/mm2]
50
m (DIN 28090)
1.4
6BO 300 °C [N/mm2]
220

Gasket characteristics ASME

m (ASME)
3
Y [PSI]
7300

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
BAM oxygen
BAM oxygen (liquid)
WRAS
Drinking water certificate HY

Flange shapes

Male-Female (form SR)
Apparatus, customized
With partition bars
