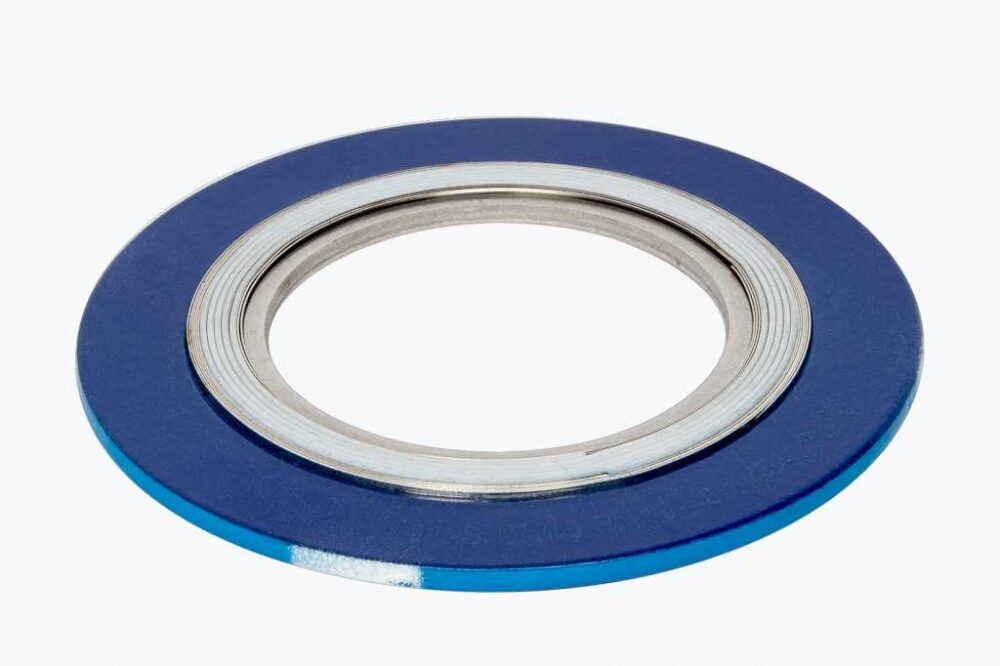

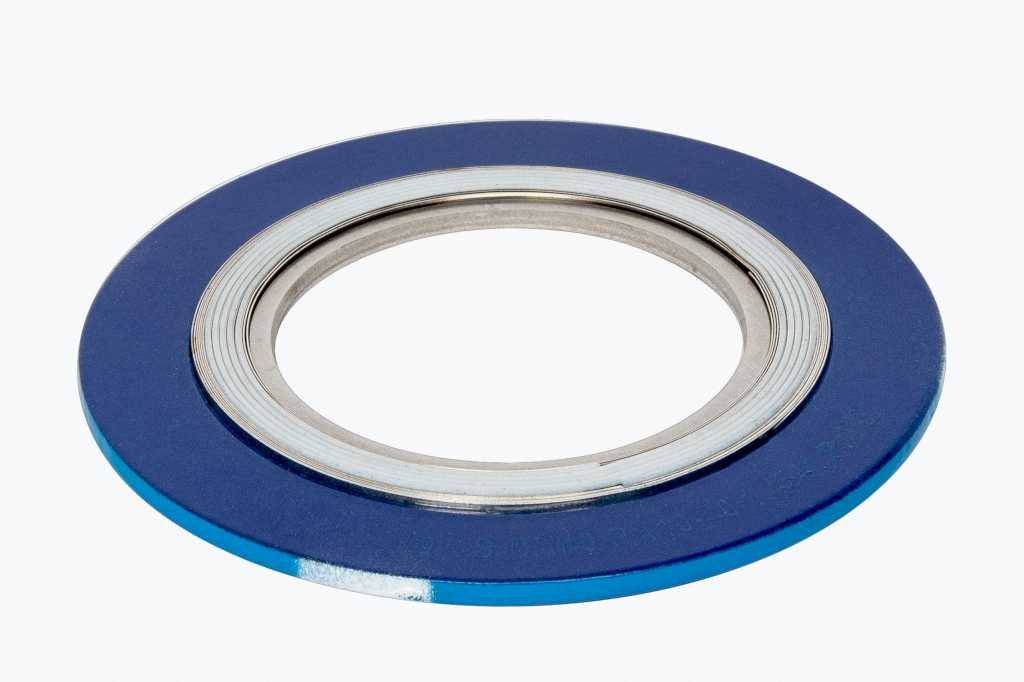

Spiral Wound Gasket with inner and outer ring, Material: 1.4404/PTFE/Carbon Steel

The Spiral Wound Gasket consists of a spirally wound, beaded metal strip made from stainless steel 1.4404. A PTFE soft material strip [unsintered] protruding on both sides is inserted between the individual windings.

The inner and outer support ring [inner ring: 1.4404, outer ring: carbon steel, corrosion protected] stabilize the spiral, while the outer ring also ensures the centering between the flange bolts.

Spiral Wound Gaskets are particularly suitable for applications with high operating pressures and critical operating conditions [e.g. alternating loads].

Enquire Now
Download Datasheet

Article Number

6045SD10

Material

6045


Profile

SD10


Material combinations other than shown here are available on request.

Description

Operating Data

Temperature (min)
-269 °C
Temperature (max)
260 °C
Pressure (max)
320 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
45 × bd
k1 [mm]
1,2 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
300
6vu 0,1 [N/mm2]
45
m (DIN 28090)
1.2
6BO 300 °C [N/mm2]
240

Gasket characteristics ASME

m (ASME)
3
Y [PSI]
6600

Approvals and test reports

TA Luft 2002 (VDI 24A0/2200)

Flange shapes

Self-centering, Raised Face (form IBC)
