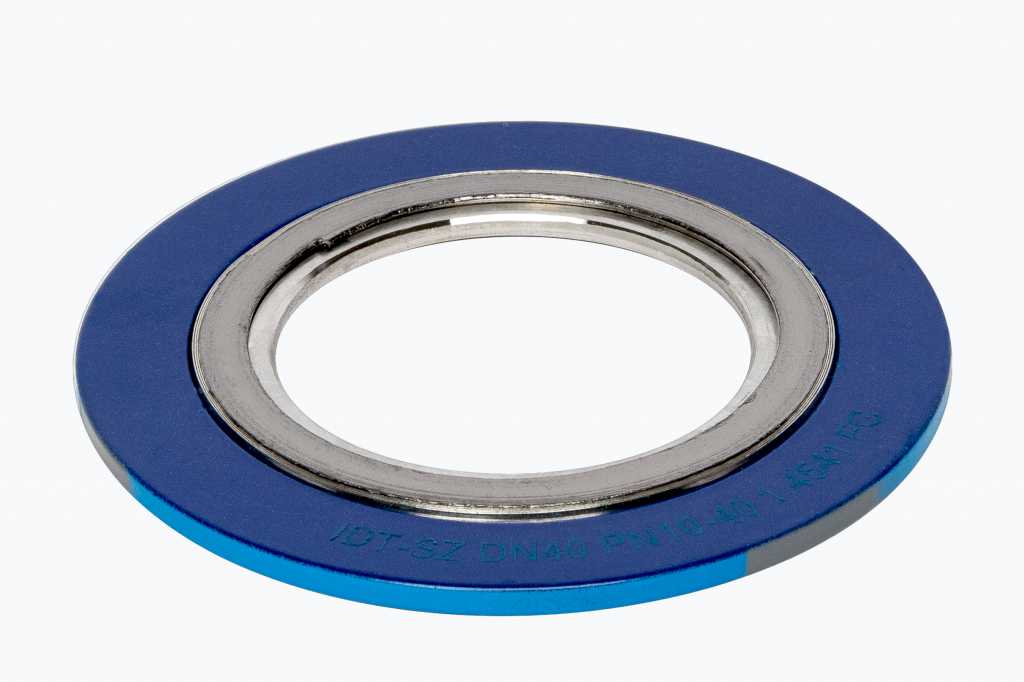

Spiral Wound Gasket with inner and outer ring, Material: 1.4404/Graphite/Carbon Steel

The Spiral Wound Gasket consists of a spirally wound, beaded metal strip made from stainless steel 1.4404. A graphite soft material strip [purity 98%C] protruding on both sides is inserted between the individual windings.

The inner and outer support ring [inner ring: 1.4404, outer ring: carbon steel, corrosion protected] stabilize the spiral, while the outer ring also ensures the centering between the flange bolts.

Spiral Wound Gaskets are particularly suitable for applications with high operating pressures and critical operating conditions [e.g. alternating loads].

Enquire Now
Download Datasheet

Article Number

6046SD10

Material

SD10


Profile

SD01


Material combinations other than shown here are available on request.

Description

Operating Data

Temperature
450 °C
Temperature (min)
-269 °C
Temperature (max)
550 °C
Pressure (max)
320 bar

Gasket characteristics EN 13555

Gasket Characteristics (IDT)

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
30 × bd
k1 [mm]
1,4 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
300
6vu 0,1 [N/mm2]
30
m (DIN 28090)
1.4
6BO 300 °C [N/mm2]
220

Gasket characteristics ASME

m (ASME)
3
Y [PSI]
4400

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
Fire Safe Test
Blow-out resistance
BAM oxygen
BAM oxygen (liquid)
Gas (DIN 3535-6)
WRAS
Drinking water certificate HY

Flange shapes

Self-centering, Raised Face (form IBC)
