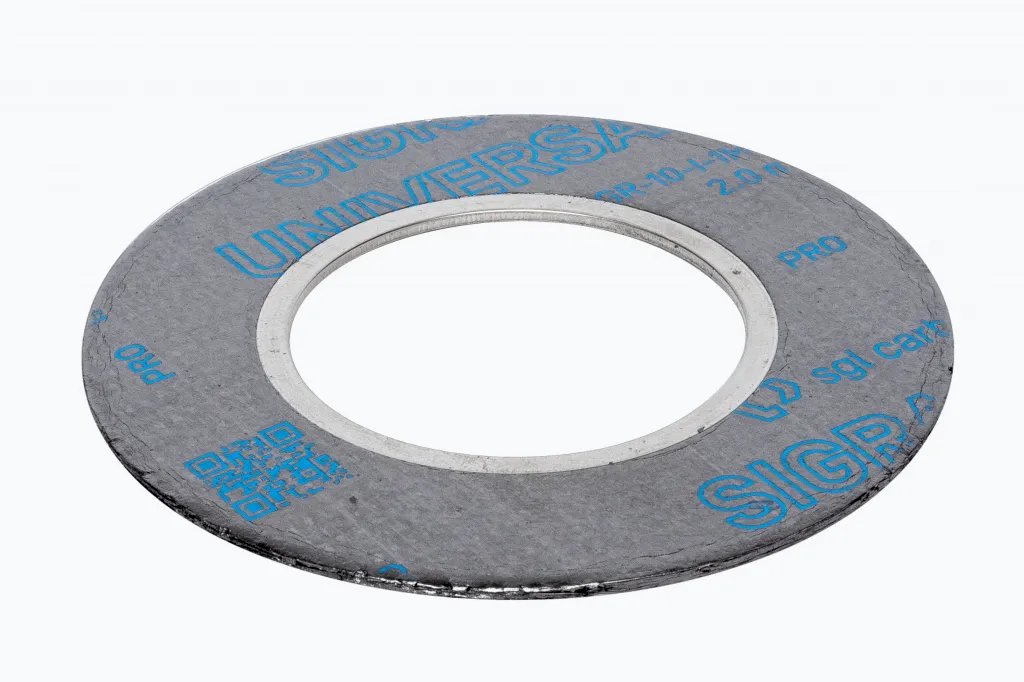

SIGRAFLEX® Universal Pro with inner eyelet

The flat gasket design corresponds to the Sigraflex Universal Pro. Additionally, the gasket also has an inner eyelet, standard 1.4571. Special materials for the inner eyelet available upon request. The system complies with the required leakage criteria by TA Luft / VDI 2440 / VDI 2200.

Enquire Now
Download Datasheet

Article Number

3865FD10

Material

3865

Profile

FD01

Description

Operating Data

Temperature
450 °C
Temperature (min)
-269 °C
Temperature (max)
550 °C
Pressure (max)
160 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
19 × bd
k1 [mm]
1,3 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
200
6vu 0,1 [N/mm2]
19
m (DIN 28090)
1.3
6BO 300 °C [N/mm2]
110

Gasket characteristics ASME

m (ASME)
2
Y [PSI]
4000

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
Fire Safe Test
Blow-out resistance
BAM oxygen
Gas (DIN 3535-6)

Flange Shapes

Self-centering, Raised Face (form IBC)
Male-Female (form SR)
Apparatus, customized
With partition bars
