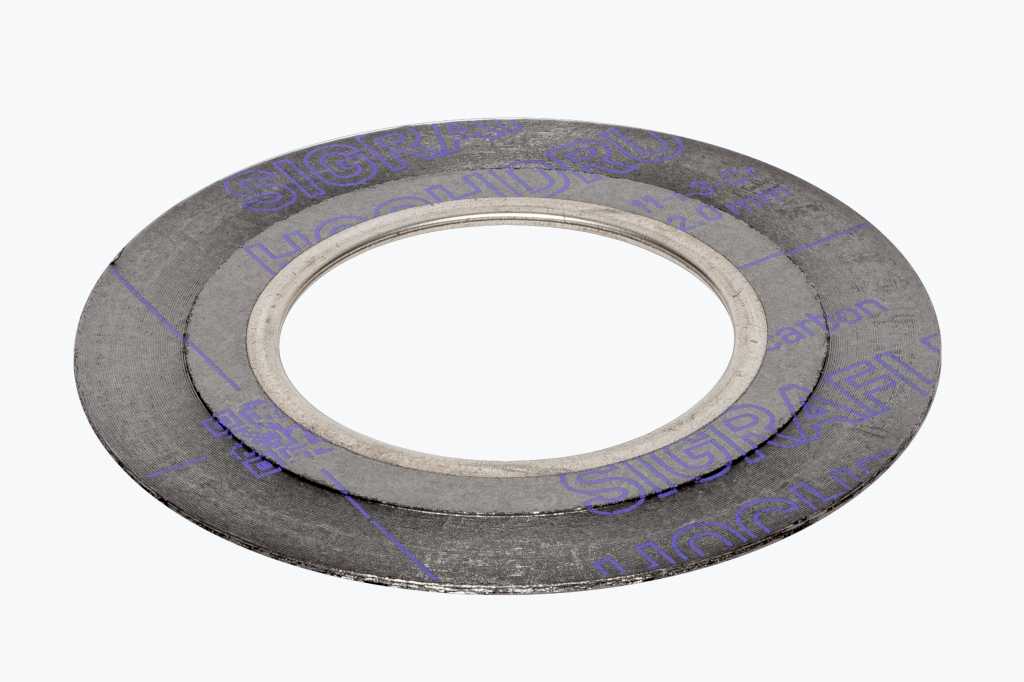

SIGRAFLEX® Hochdruck flat gasket with inner eyelet and pre-compressed centering ring

Basic design corresponds to Sigraflex Hochdruck flat gaskets with inner eyelet. The seal is, however, also pre-compressed in the outer area. Lower surface stress is required during installation of the flat gasket due to the reduced surface area.

Enquire Now
Download Datasheet

Article Number

3885FD11

Material

3885

Profile

FD11

Description

Operating Data

Temperature
450 °C
Temperature (min)
-269 °C
Temperature (max)
550 °C
Pressure (max)
250 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
20 × bd
k1 [mm]
1,3 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
200
6vu 0,1 [N/mm2]
20
m (DIN 28090)
1.3
6BO 150 °C [N/mm2]
180
6BO 300 °C [N/mm2]
130

Gasket characteristics ASME

m (ASME)
2.5
Y [PSI]
2200

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
Fire Safe Test
Blow-out resistance
BAM oxygen
BAM oxygen (liquid)
Gas (DIN 3535-6)
EG 1935/2004

Flange Shapes

Self-centering, Raised Face (form IBC)
With partition bars
