Application

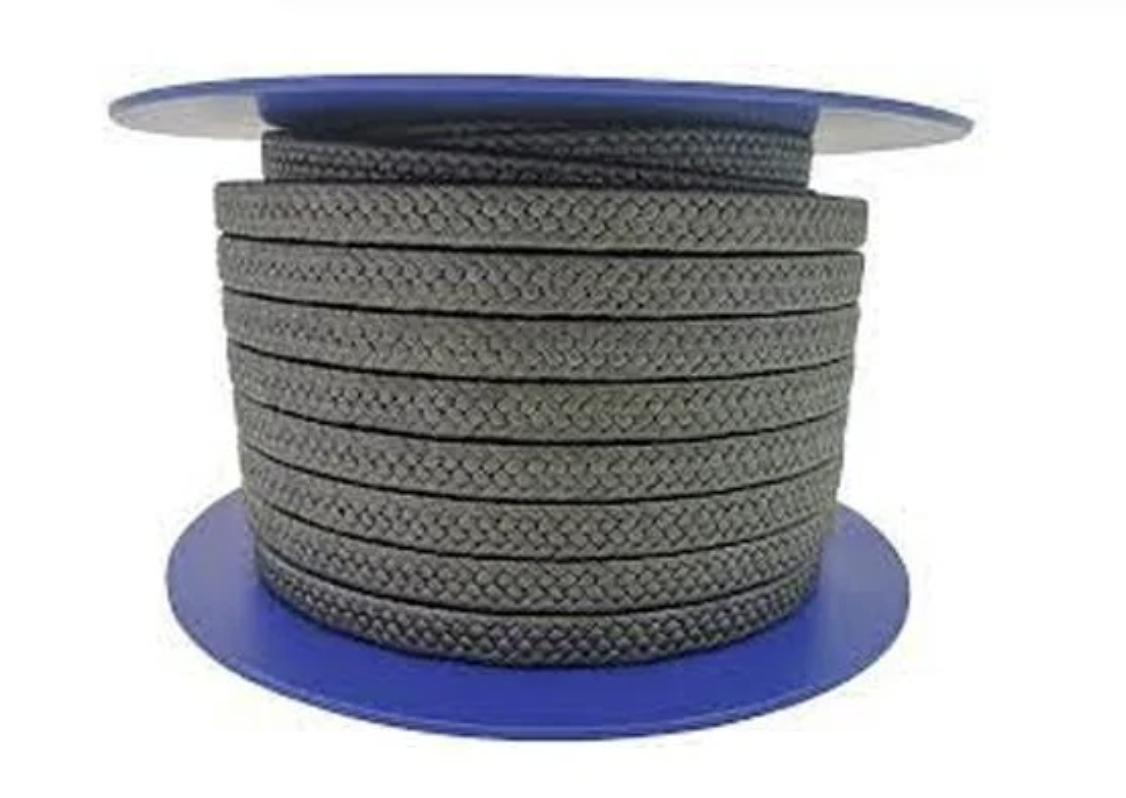

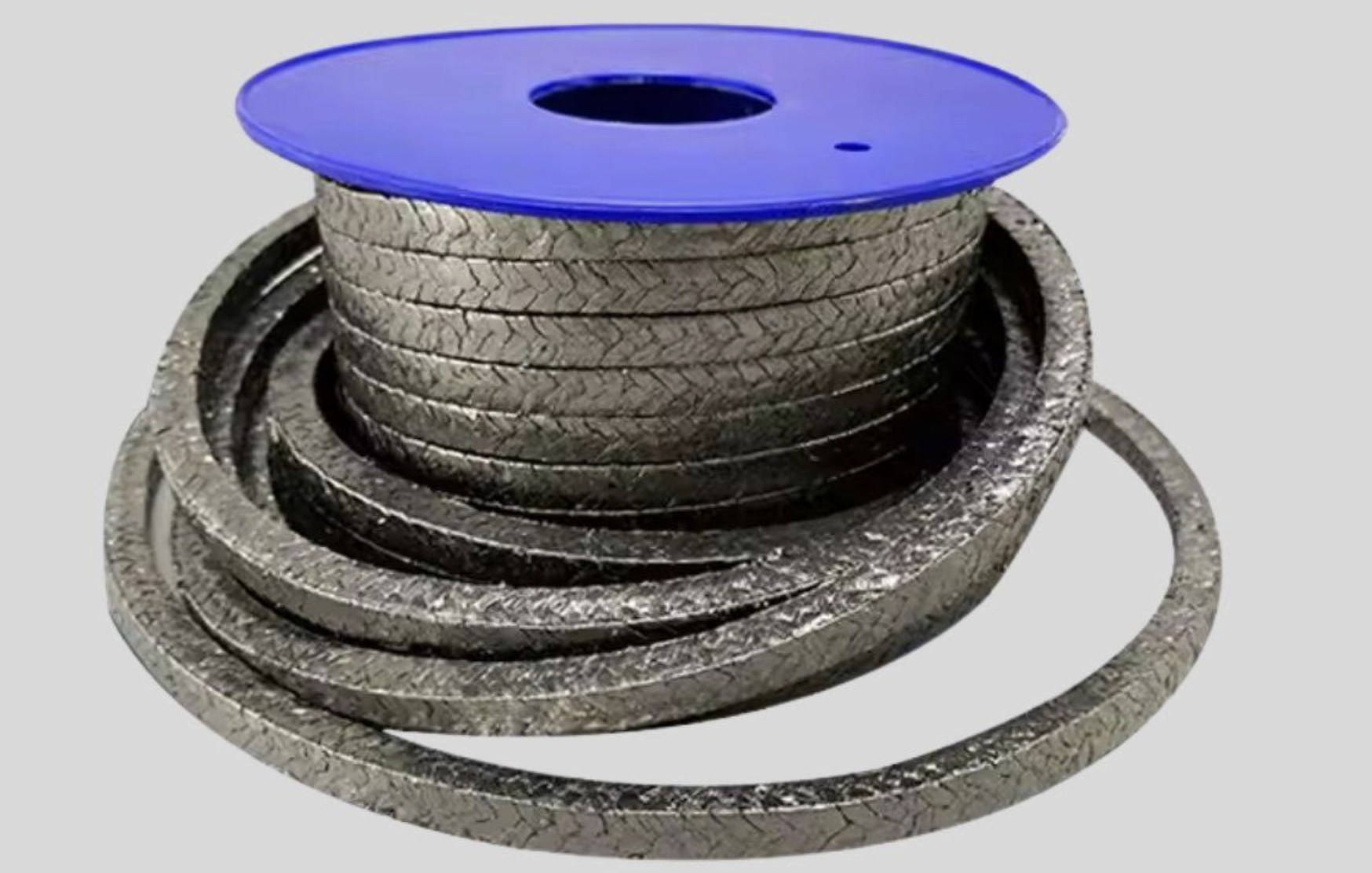

- Expanded Graphite Packing with corrosion inhibitor reinforced with SS Wire insert.
- Sealmax Style – 902 SS is very flexible packing and good alternative to pre-formed pure graphite rings. Style 902 SS combines the benefits of a coil form packing with the sealing efficiency of pre-formed pure graphite rings; high pressure and extrusion resistance; excellent thermal conductivity; suitable for a wide temperature range and can be sealed under ideal mechanical conditions of lower temperature.
- It can handle most chemicals, acids & alkalis. Excellent use in steam turbines, high temperature motor -actuated valves and for high temperature and high-pressure valve applications in general
Application Media
Steam water, Fuel Gases, chemicals, mineral and synthetic oils, effluents, suitable in all processes except with highly oxidizing media.
Benefits
Style 902 SS is suitable for a wide range of applications and can reduce stock inventories considerably. Very economic alternatives to asbestos packings. Easy to install and reduce maintenance time.
|
General Specifications
|
|||
|
SR.NO.
|
Parameters
|
Specifications
|
Remarks
|
|
1.
|
Material
|
Graphite gland packing with SS insert
|
–
|
|
2.
|
Colour
|
Black
|
–
|
|
3.
|
Pressure (Static)
|
380 Bar
|
–
|
|
4.
|
Density
|
1.1 g/cm3
|
–
|
|
5.
|
Temperature
|
-240o C to + 450o C
|
–
|
|
6.
|
Temperature (Steam)
|
650o C
|
–
|
|
7.
|
Temperature (inert Gas)
|
1000o C
|
–
|
|
8.
|
Ph range
|
0~14
|
–
|
|
9.
|
Standard Sizes
|
3 mm / 4 mm/ 6 mm/ 8 mm/ 10 mm/
12 mm / 14 mm / 16 mm / 18 mm / 20 mm 25 mm
|
–
|
|
10.
|
Standard Spool Size
|
1 Kgs / 2 Kgs / 5 Kgs
|
–
|
