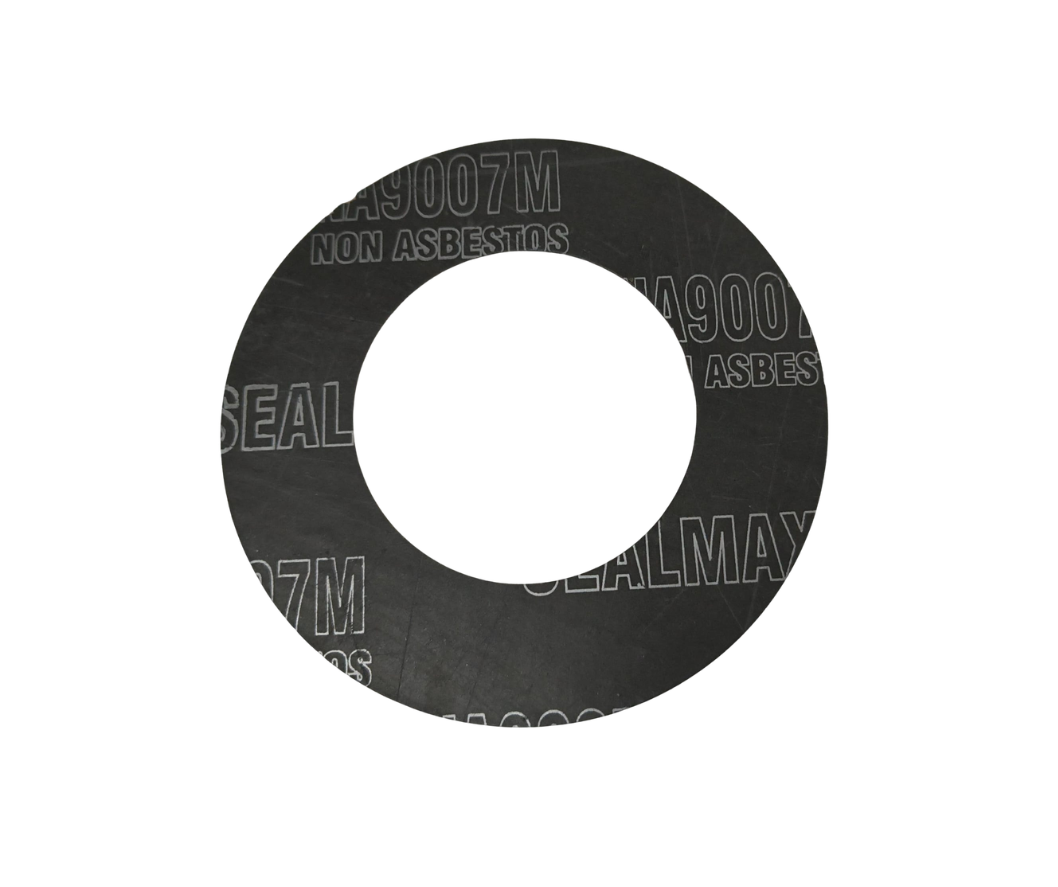

Sealmax Style 9007M
Sealmax Style 9007M is manufactured from mineral fiber, aramid fiber, inorganic filler bonded with NBR binder and reinforced with steel wire.
Style 9007M is suitable for use with oils, fuels, lubricants, alcohols, gases, hydrocarbons, steam, water and cooling liquids, and is resistant to most diluted acids and alkalies under medium stress operating conditions.
Area of Application
Area of Application

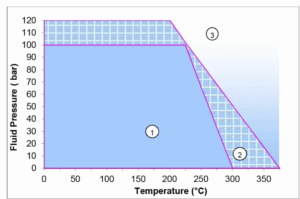

(Refer to pressure–temperature graph)
- Gasket material is normally suitable, subject to chemical compatibility.
- Gasket material may be suitable; technical support is recommended.
- Do not install the gasket without technical evaluation.
|
Technical Specifications (All data are typical values and refer to a sheet thickness of 2.0 mm)
|
||||
|
SR.NO.
|
PROPERTIES
|
Test Method
|
Specified Value
|
Unit
|
|
1.
|
Max. Peak Temperature
|
–
|
350
|
°C
|
|
2.
|
Max. Operating Temperature
|
–
|
250
|
°C
|
|
3.
|
Max. Operating Pressure
|
–
|
90
|
bar
|
|
4.
|
Density
|
ASTM F 1315
|
1.70 – 2.00
|
g/cm³
|
|
5.
|
Compressibility
|
ASTM F 36 J
|
7 – 17
|
%
|
|
6.
|
Recovery
|
ASTM F 36 J
|
≥ 50
|
%
|
|
7.
|
Tensile Strength
|
ASTM F 152
|
≥ 10.0
|
N/mm²
|
|
8.
|
ASTM Oil No. 3 (5h, 150°C)
|
ASTM F 146
|
|
|
|
8a.
|
Thickness Increase
|
|
≤ 10
|
%
|
|
8b.
|
Weight Increase
|
≤ 15
|
%
|
|
|
9
|
Fuel B (5h, 23°C)
|
ASTM F146
|
|
|
|
9a.
|
Thickness Increase
|
|
≤ 10
|
%
|
|
9b.
|
Weight Increase
|
≤ 15
|
%
|
|
|
10
|
Water (5h, 100°C)
|
ASTM F 146
|
|
|
|
10a.
|
Thickness Increase
|
|
≤ 10
|
%
|
|
10b.
|
Weight Increase
|
|
≤ 10
|
%
|
|
11.
|
Stress Relaxation (16h x 175°C)
|
DIN 52913
|
≥ 22
|
MPa
|
|
General Specifications
|
||
|
SR.NO.
|
Particulars
|
Remarks
|
|
1.
|
Standard Sheet Size
|
1500 mm x 1500 mm, 1500 mm x 2000 mm, 1500 mm x 3000 mm, 1500 mm x 4000 mm, 1500 mm x 4500 mm, 2000 mm x 3000 mm
|
|
2.
|
Standard Thickness
|
0.80 mm to 6.0 mm
|
|
3.
|
Tolerance on Width
|
± 50 mm
|
|
4.
|
Tolerance on Length
|
± 50 mm
|
|
5.
|
Tolerance on Thickness
|
< 1mm = ± 0.10mm> 1 mm = ± 10%
|
