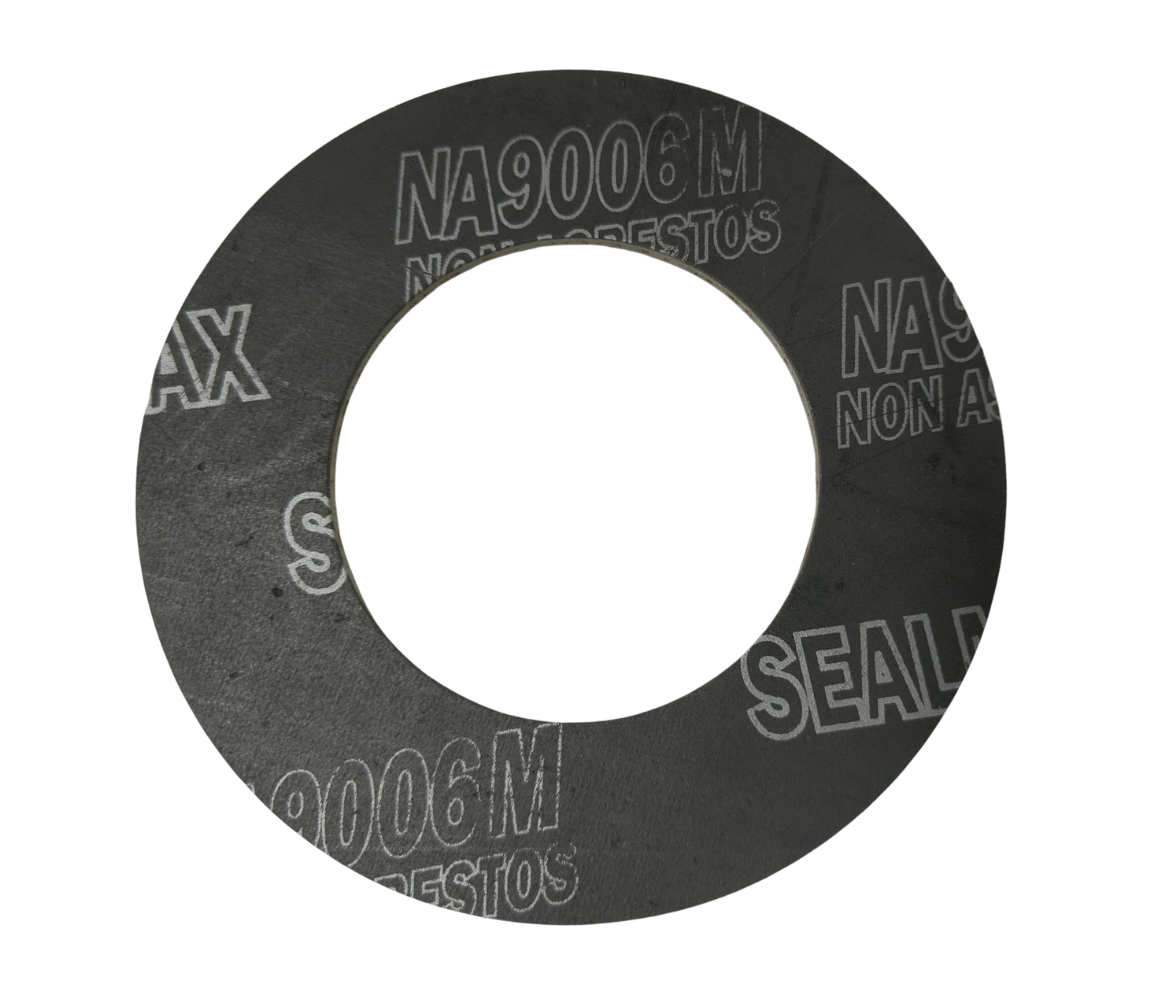

Sealmax Style 9006M
Sealmax Style 9006M is manufactured from mineral fiber, organic fiber, inorganic fillers bonded with NBR binder and reinforced with steel wire.
Style 9006M is suitable for medium operating pressure applications such as transformers and compressors. It is also recommended for easily deformable components with low surface pressure, such as valve covers and pans in internal combustion engines.
Area of Application
Area of Application

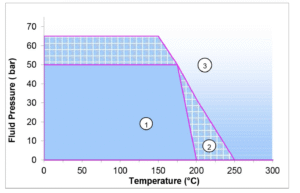

(Refer to pressure–temperature graph)
- Gasket material is normally suitable, subject to chemical compatibility.
- Gasket material may be suitable; technical support is recommended.
- Do not install the gasket without technical evaluation.
|
Technical Specifications (All data are typical values and refer to a sheet thickness of 2.0 mm)
|
||||
|
SR.NO.
|
PROPERTIES
|
Test Method
|
Specified Value
|
Unit
|
|
1.
|
Max. Peak Temperature
|
–
|
250
|
°C
|
|
2.
|
Max. Operating Temperature
|
–
|
200
|
°C
|
|
3.
|
Max. Operating Pressure
|
–
|
65
|
bar
|
|
4.
|
Density
|
ASTM F 1315
|
1.70 – 2.00
|
g/cm³
|
|
5.
|
Compressibility
|
ASTM F 36 J
|
7 – 17
|
%
|
|
6.
|
Recovery
|
ASTM F 36 J
|
≥ 40
|
%
|
|
7.
|
Tensile Strength
|
ASTM F 152
|
≥ 8
|
N/mm²
|
|
8.
|
ASTM Oil No. 3 (5h, 150°C)
|
ASTM F 146
|
|
|
|
9.
|
Thickness Increase
|
|
≤ 15
|
%
|
|
10.
|
Weight Increase
|
≤ 20
|
%
|
|
|
11.
|
Fuel B (5h, 23°C)
|
ASTM F146
|
|
|
|
12.
|
Thickness Increase
|
|
≤ 20
|
%
|
|
General Specifications
|
||
|
SR.NO.
|
Particulars
|
Remarks
|
|
1.
|
Standard Sheet Size
|
1500 mm x 1500 mm, 1500 mm x 2000 mm, 1500 mm x 3000 mm, 1500 mm x 4000 mm, 1500 mm x 4500 mm, 2000 mm x 3000 mm
|
|
2.
|
Standard Thickness
|
0.80 mm to 6.0 mm
|
|
3.
|
Tolerance on Width
|
± 50 mm
|
|
4.
|
Tolerance on Length
|
± 50 mm
|
|
5.
|
Tolerance on Thickness
|
< 1mm = ± 0.10mm> 1 mm = ± 10%
|
