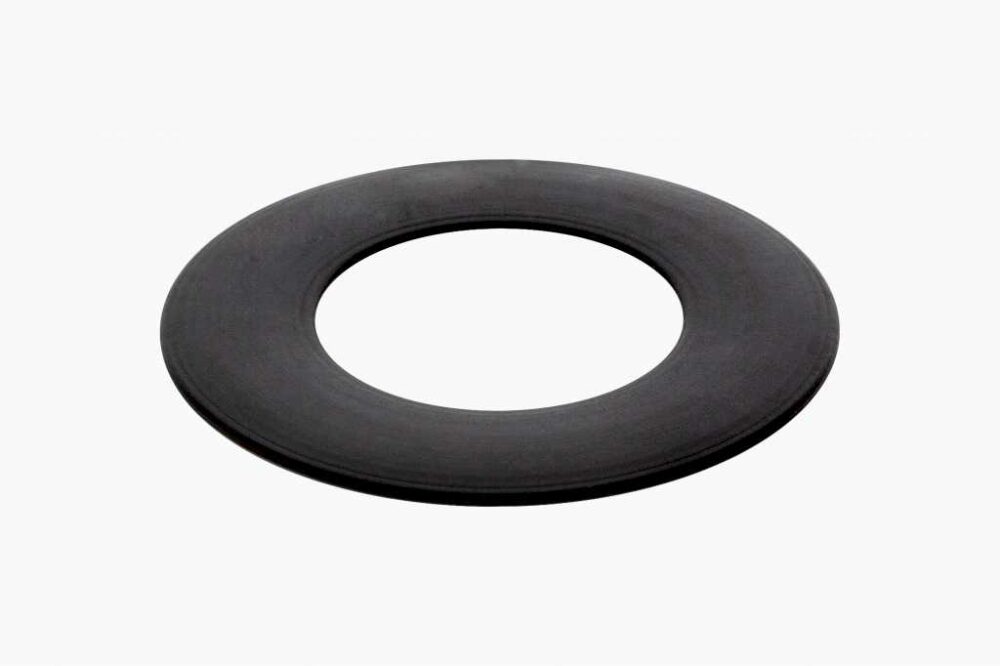

Rubber-Steel gasket G-ST (NBR)

The gasket consists of a lens-shaped rubber body and an interior steel ring. The rubber jacketing is vulcanised firmly to the steel insert which creates a sturdy compound which can withstand even high stresses. The steel insert increases the blow-out resistance and stability of the sealing system. The lens shape causes a partial increase in surface pressure.

Enquire Now
Download Datasheet

Article Number

0184GS01

Material

0184


Profile

GS01

Description

Operating Data

Temperature (min)
-25 °C
Temperature (max)
70 °C
Pressure (max)
25 bar

Gasket characteristics DIN 2505 V

k1 [mm]
1 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
15
6vu 0,1 [N/mm2]
2
m (DIN 28090)
1

Gasket characteristics ASME

m (ASME)
2
Y [PSI]
300

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
W270
FDA (Food)

Flange Shapes

PTFE-lined steel flange
