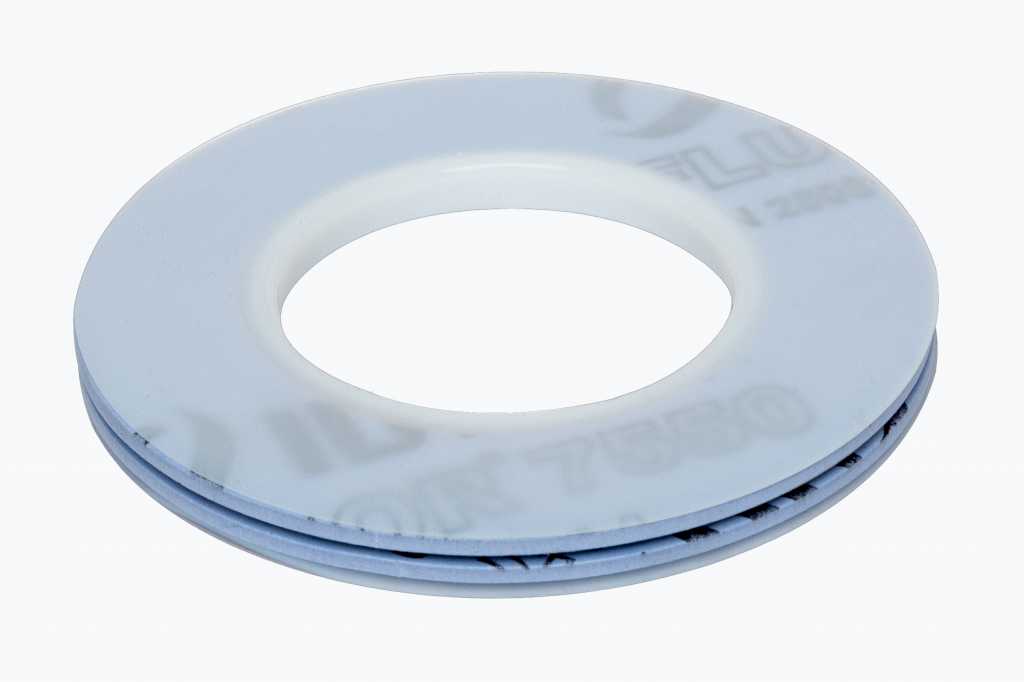

PTFE TFM™ envelope gasket, with inner diffusion barrier, stainless steel corrugated ring and 2 PTFE inserts

The cover is made of TFM™ 1600 with an internal diffusion barrier (width 3 mm). A corrugated ring (1.4571) and two PTFE inserts of UNIFLUOR® 7550 quality (each 2 mm thick) are used as inserts. This Gasket is characterized by a high compensation capacity and is recommended by the leading enamel flange manufacturers from DN 250, but is available in all nominal widths.

Enquire Now
Download Datasheet

Article Number

7145ED30

Material

7145


Profile

ED30

TFM™ is a modified PTFE [mPTFE]. This material is still part of our portfolio. Alternatively, we process mPTFE such as INOFLON® M295 or DAIKIN® MG3 MOD-FF/HD.

Description

Operating Data

Temperature (min)
-269 °C
Temperature (max)
200 °C
Pressure (max)
40 bar

Gasket characteristics EN 13555

Gasket Characteristics (Amtec)

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
8 × bd
k1 [mm]
1,1 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
60
6vu 0,1 [N/mm2]
8
m (DIN 28090)
1.1
6BO 150 °C [N/mm2]
55

Gasket characteristics ASME

m (ASME)
2
Y [PSI]
1200

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
Blow-out resistance
BAM oxygen
BAM oxygen (liquid)
Drinking Water (KTW; WRAS)
WRAS
W270
FDA (Food)
EG 1935/2004

Flange Shapes

Glass-lined, Enamelled flange
GRP flange
Plastic flange
PTFE-lined steel flange
