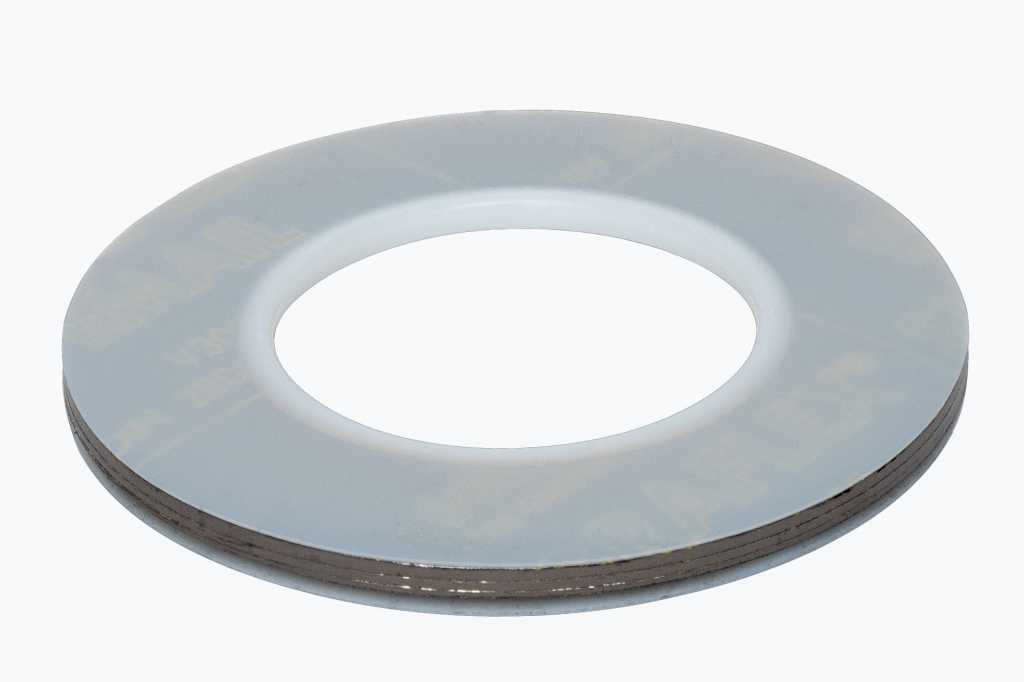

PTFE TFM™ envelope gasket, with inner diffusion barrier and EPDM insert

The PTFE envelope is made of TFM™ 1600 with an inner diffusion barrier (3 mm wide) and a EPDM insert (3 mm thick).

Enquire Now
Download Datasheet

Article Number

7176ED10

Material

7176


Profile

ED10

TFM™ is a modified PTFE [mPTFE]. This material is still part of our portfolio. Alternatively, we process mPTFE such as INOFLON® M295 or DAIKIN® MG3 MOD-FF/HD.

Description

Operating Data

Temperature (min)
-30 °C
Temperature (max)
120 °C
Pressure (max)
10 bar

Gasket characteristics DIN 28090

6vo [N/mm2]
20
6vu 0,1 [N/mm2]
8
m (DIN 28090)
1

Approvals & Test Reports

Drinking Water (KTW; WRAS)
W270
FDA (Food)
EG 1935/2004

Flange Shapes

Self-centering, Raised Face (form IBC)
Glass-lined, Enamelled flange
GRP flange
Plastic flange
PTFE-lined steel flange
