Description
Operating Data
Temperature (min)
-269 °C
Temperature (max)
260 °C
Density approx. (g/cm³)
1.7 g/cm³
Material structure
PTFE
Waterproofing
PTFE
Lubricant
ja (silikonfrei)
K-factor
0.9
Fields of Application
Piston pump (Vg)
2 m/s
Piston pump (p)
150 bar
Impeller pump (Vg)
10 m/s
Impeller pump (p)
10 bar
Valves (p)
100 bar
Applications
abrasive and sticky media
not suitable
Water, Process water, Lake water
suitable
Hot water, boiler dining water
suitable
Vapors, acid gases, nitrogen
suitable
Oxygen
not suitable
Mineral oils, animal fats
suitable
Heat carrier oils, synthetic oils
suitable
Alcalia diluted, salt solutions
suitable
Alcalia concentrated
suitable
Inorganic acids diluted, salt solutions
suitable
Inorganic acids concentrated
suitable
Solvents, other organic compounds
suitable
Lacques, colors (silicone -free)
suitable
Approvals & Test Reports
FDA (Food)
Forms of delivery

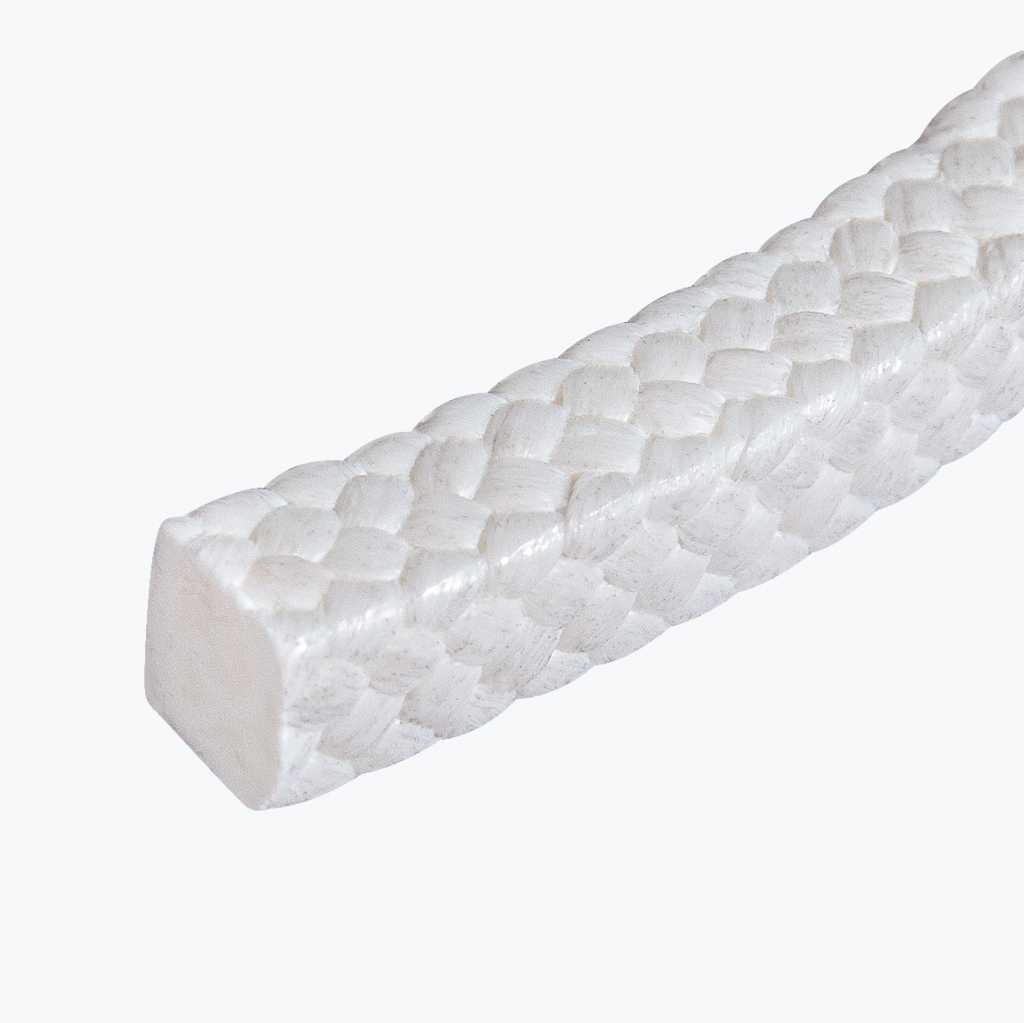

Ready-to-install, compression-molded packing rings made to measure; as complete packing sets; sold by the meter in boxes;
1 kg
3 - 7 mm vkt.
2 kg
8 - 11 mm vkt.
3,5 kg
12 - 14 mm vkt.
5 kg
15 - 19 mm vkt.
10 kg
ab 20 mm vkt.
