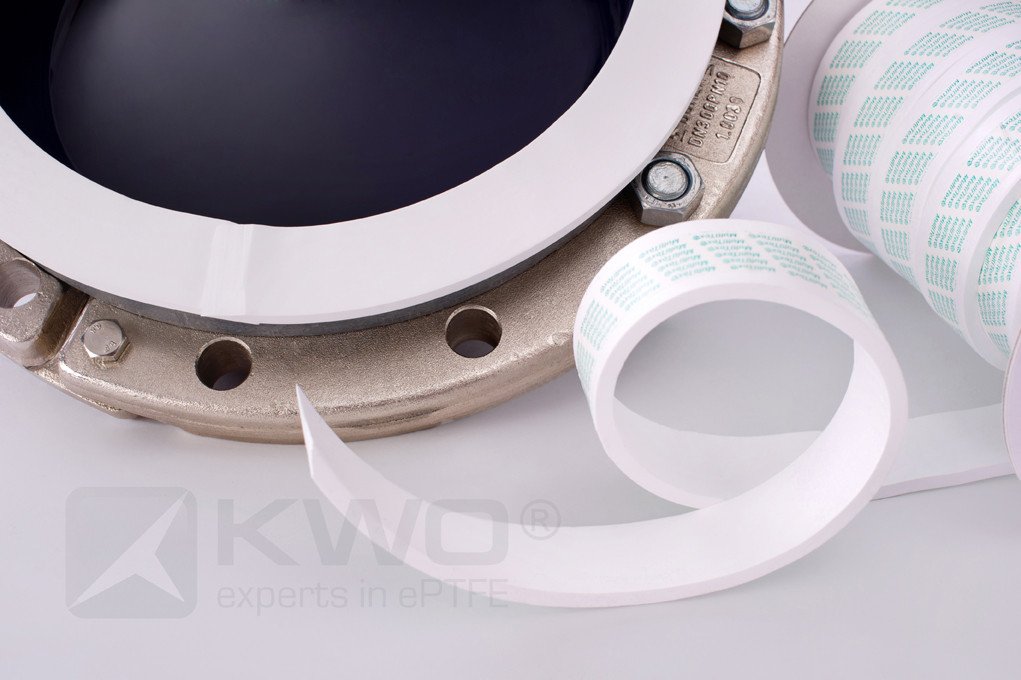

KWO® MultiTex® Tape – ePTFE gasket tape
KWO® MultiTex® Tape is a high-quality gasket material produced from multidirectionally expanded PTFE.
The flexible material adapts well to sealing surfaces, compensates irregularities and seals at very low stresses.
Form in place PTFE gasket tape, especially used on large and irregularly shaped steel flanges or glass lined steel flanges.
Advantages
Attributes
Application
Certifications
Advantages
- adapts well to sealing surfaces
- compensates irregularities
- superior resistance to creep and cold flow
- very high sealability especially at very low stresses
- harmless in contact with food
Attributes
- heat exchangers, apparatus constructions
- reactors, glass lined flanges
- GRP-pipelines and -tanks
- pharmaceutical- and food processing equipment
Application
- heat exchangers, apparatus constructions
- reactors, glass lined flanges
- GRP-pipelines and -tanks
- pharmaceutical- and food processing equipment
Certifications
- BAM – suitable for use with oxygen
- TA Luft regulation and blow out safety acc. to VDI 2200
- specific values according to DIN EN 13555
- FDA 21 CFR 177.1550 compliant
- EC1935/2004 – suitable for food applications
| MATERIAL | 100% multidirectional expanded PTFE (ePTFE) - self-adhesive |
| CHEMICAL RESISTANCE | in the entire pH range (pH 0-14, except molten alkali metals and elemental fluorine) |
| TEMPERATURE RANGE | -268°C (-450°F) up to +270°C (+518°F), short-term +315°C (+600°F); recommended temperature range: from -160°C (-256°F) to +230°C (+446°F)* |
| PRESSURE RESISTANCE | vacuum up to 200bar (3000psi) depending on the installation situation* |
| PHYSIOLOGICALLY INERT | physiologically harmless in all recommended applications |
| DENSITY | 0,75 g/cm³ ± 0,15 g/cm³ |
*Note: Temperature and pressure guides cannot necessarily be used simultaneously.
