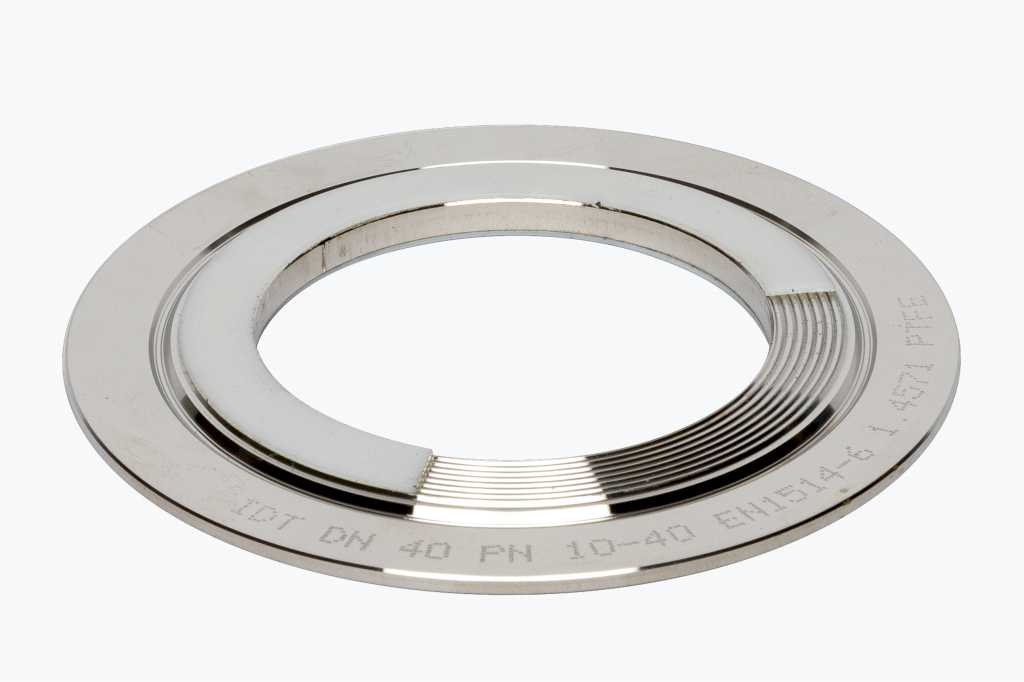

Grooved gasket[convex-shaped profile] with integral centering ring, pre-determined breaking point and both-sided PTFE layers

The convex-shaped grooved stainless steel core [1.4571, pitch 1,0 mm] is covered on both sides with soft material layers made from PTFE [unsintered]. The integral centering ring [machined] is additionally provided with a pre-determined breaking point, which prevents vibration breaks in the sealing area.

Grooved gaskets require low minimum sealing surface pressure, but can also resist very high loads.

Grooved gaskets impress by a high pressure application limit, low leakage rate and are therefore suitable for extreme operation conditions.

Enquire Now
Download Datasheet

Article Number

6713KD24

Material

6713


Profile

KD24


Other core materials available on request.

Description

Operating Data

Temperature (min)
-269 °C
Temperature (max)
260 °C
Pressure (max)
400 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
15 × bd
k1 [mm]
1,1 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
500
6vu 0,1 [N/mm2]
15
m (DIN 28090)
1.1
6BO 200 °C [N/mm2]
450

Gasket characteristics ASME

m (ASME)
2.5
Y [PSI]
2200

Approvals and test reports

Drinking Water (KTW; WRAS)
WRAS
W270

Flange shapes

Self-centering, Raised Face (form IBC)
