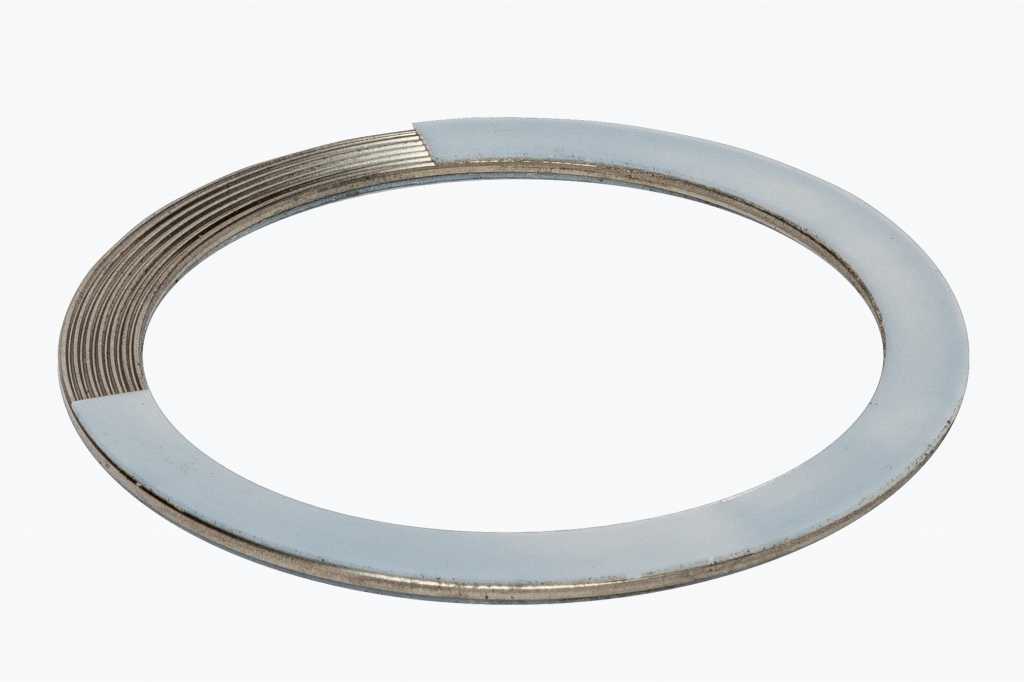

Grooved gasket without centering ring and both-sided PTFE layers

The grooved stainless steel core [1.4571, pitch 1,0 mm] is covered on both sides with soft material layers made from PTFE [unsintered]. Grooved gaskets require low minimum sealing surface pressure, but can also resist very high loads.

Grooved gaskets impress by a high pressure application limit, low leakage rate and are therefore suitable for extreme operation conditions.

Grooved gaskets can be manufactured in small thicknesses so that they can be used also in tongue and groove connections in the range of common groove depths.

Enquire Now
Download Datasheet

Article Number

6713KD01

Material

6713


Profile

KD01


Other core materials available on request.

Description

Operating Data

Temperature (min)
-269 °C
Temperature (max)
260 °C
Pressure (max)
400 bar

Gasket characteristics DIN 2505 V

K0×Kd [N/mm2]
15 × bd
k1 [mm]
1,1 × bd

Gasket characteristics DIN 28090

6vo [N/mm2]
500
6vu 0,1 [N/mm2]
15
m (DIN 28090)
1.1
6BO 200 °C [N/mm2]
450

Gasket characteristics ASME

m (ASME)
2.25
Y [PSI]
2200

Approvals and test reports

TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
Drinking Water (KTW; WRAS)
WRAS
W270

Flange shapes

Tongue and Groove (form TG)
Male-Female (form SR)
Apparatus, customized
With partition bars
