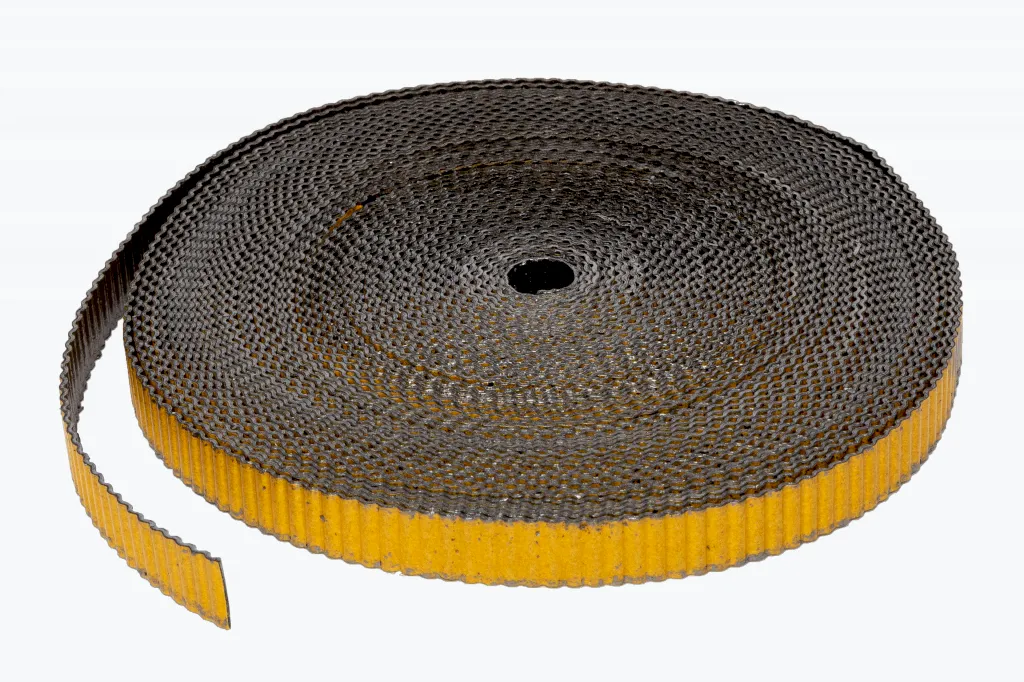

Flexible pure graphite tape, crinckled, made from pure graphite expandat without filler and binders (corrugated with glue strip)

  • Nuclear quality 99,85% C
  • Chloride content as per DIN28090-2 ≤ 20 ppm
  • Instant sealing material for valve spindles
  • Thickness [mm]: 0.35; 0.5; 0.8; 1.0
  • Widths of [mm]: 5 up to 60 mm
Enquire Now
Download Datasheet

Article Number

3890BD11

Material

3890

Profile

BD11

Description

Operating Data

Temperature
450 °C
Temperatur (min)
-269 °C
Temperatur (max)
550 °C

Approvals & Test Reports

BAM oxygen
BAM oxygen (liquid)
Gas (DIN 3535-6)
FDA (Food)
EG 1935/2004
Drinking water certificate HY

Forms of delivery

Other dimensions are available on request.
Rolle
10m
