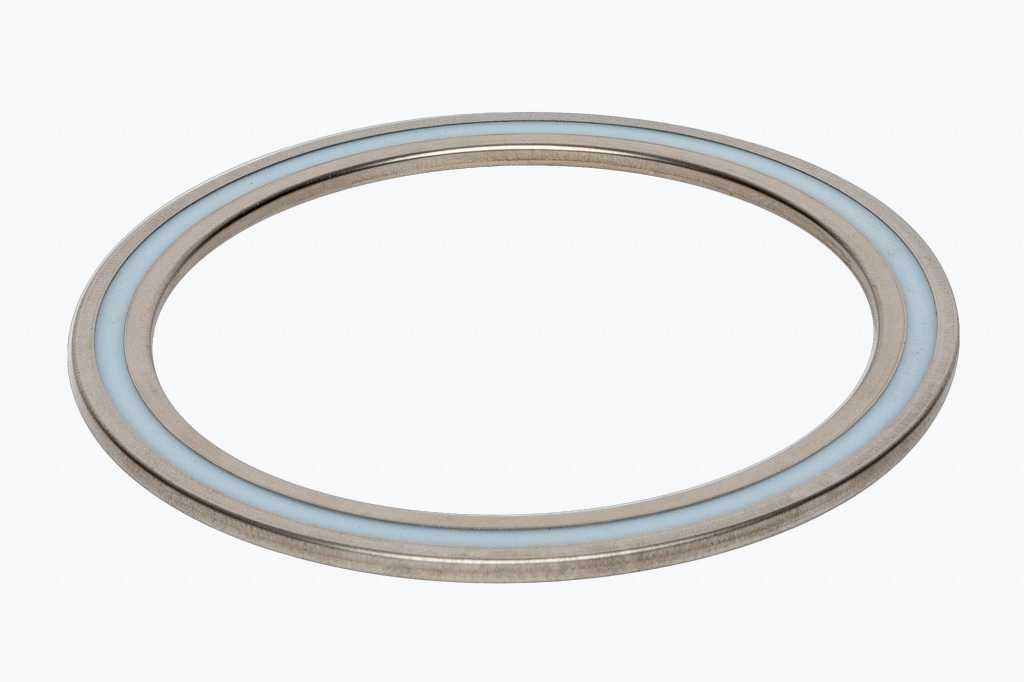

Flat gasket from TFM™ 1600 with inner and outer eyelet

UNIFLUOR® WS 7553 is a high quality biaxially orientated sealing material on PTFE basis, filled with barium sulphate.

Enquire Now
Download Datasheet

Article Number

7110FD30

Material

FD30

Profile

FD01



TFM™ is a modified PTFE [mPTFE]. This material is still part of our portfolio. Alternatively, we process mPTFE such as INOFLON® M295 or DAIKIN® MG3 MOD-FF/HD.

Description

Operating Data

Temperature (min)
-269 °C
Temperature (max)
200 °C
Pressure (max)
40 bar

Gasket characteristics EN 13555

Dichtungskennwerte 2 mm (Amtec)

Gasket characteristics DIN 28090

6vo [N/mm2]
117
6vu 0,1 [N/mm2]
23
m (DIN 28090)
1.2
6BO 200 °C [N/mm2]
40
6BO 300 °C [N/mm2]
200

Gasket characteristics ASME

m (ASME)
1.5
Y [PSI]
1900

Approvals & Test Reports

TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
Drinking Water (KTW; WRAS)
WRAS
W270
FDA (Food)
EG 1935/2004

Flange Shapes

ongue and Groove (form TG)
Male-Female (form SR)
Apparatus, customized
