Description
Operating Data
Temperature (min)
-269 °C
Temperature (max)
400 °C
Density approx. (g/cm³)
1.2 g/cm³
Material structure
Kohle
Waterproofing
Graphit
Lubricant
ja (silikonfrei)
K-factor
0.9
Steam
500 °C
Fields of Application
Impeller pump (Vg)
25 m/s
Impeller pump (p)
20 bar
Valves (Vg)
2 m/s
Valves (p)
100 bar
Applications
abrasive and sticky media
not suitable
Water, Process water, Lake water
suitable
Hot water, boiler dining water
limited suitability
Vapors, acid gases, nitrogen
suitable
Oxygen
not suitable
Mineral oils, animal fats
suitable
Heat carrier oils, synthetic oils
suitable
Alcalia diluted, salt solutions
limited suitability
Alcalia concentrated
not suitable
Inorganic acids diluted, salt solutions
limited suitability
Inorganic acids concentrated
not suitable
Solvents, other organic compounds
limited suitability
Lacques, colors (silicone -free)
limited suitability
Forms of delivery

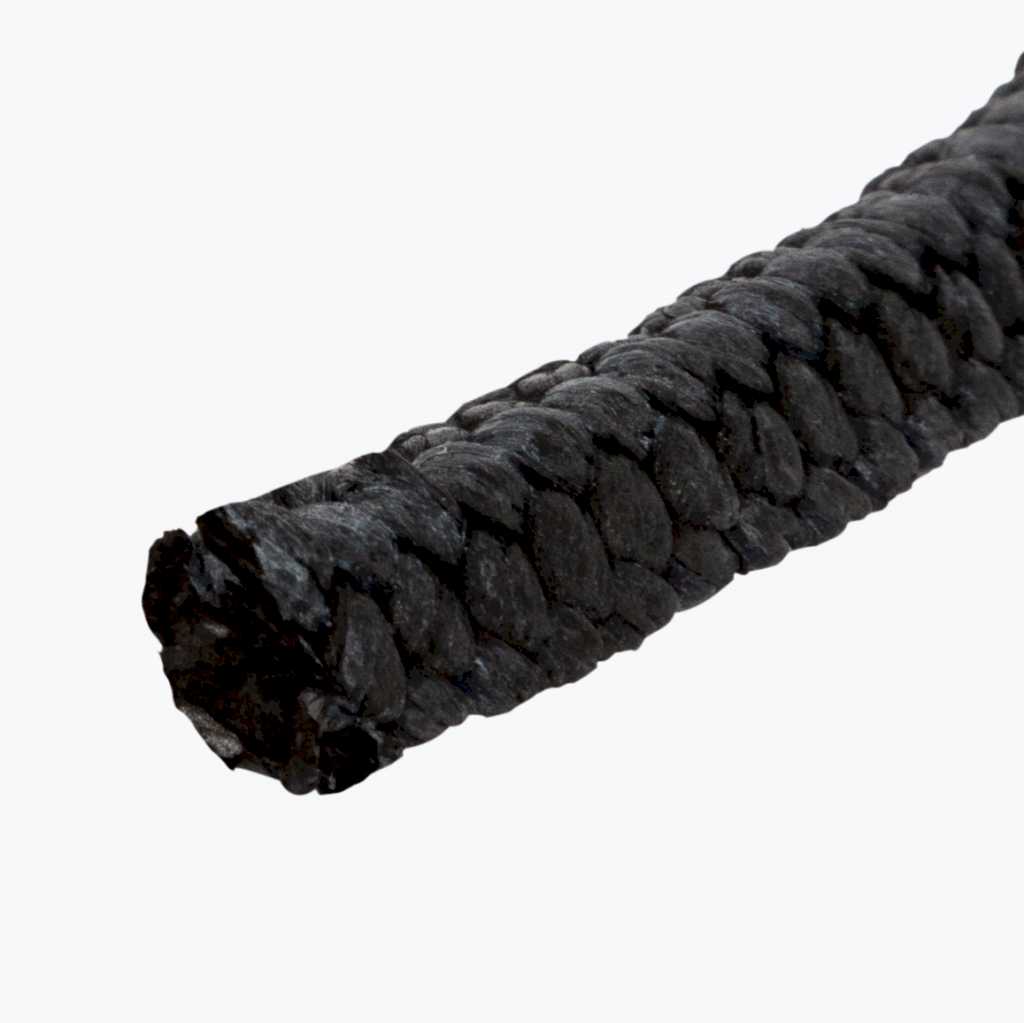

Ready-to-install, compression-molded packing rings made to measure; as complete packing sets; sold by the meter in boxes;
1 kg
3 - 7 mm vkt.
2 kg
8 - 11 mm vkt.
3,5 kg
12 - 14 mm vkt.
5 kg
15 - 19 mm vkt.
10 kg
ab 20 mm vkt.
